Texas Instruments AMC1304L05QDWRQ1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 34.43 | Dhs. 34.43 |
| 15+ | Dhs. 33.32 | Dhs. 499.80 |
| 25+ | Dhs. 32.60 | Dhs. 815.00 |
| 50+ | Dhs. 30.79 | Dhs. 1,539.50 |
| 100+ | Dhs. 27.17 | Dhs. 2,717.00 |
| N+ | Dhs. 5.43 | Price Inquiry |
Request Quote / Inquiry
Texas Instruments AMC1304L05QDWRQ1 - Automotive-Grade Isolated Delta-Sigma Modulator
The AMC1304L05QDWRQ1 is a precision 16-bit isolated delta-sigma modulator from Texas Instruments, specifically designed for automotive applications requiring galvanic isolation and high-accuracy analog-to-digital conversion. This AEC-Q100 qualified component delivers exceptional performance in harsh automotive environments with an operating temperature range of -40°C to 125°C.
Key Features & Benefits
- High-Resolution Performance: 16-bit resolution with 78kSPS sampling rate ensures precise signal acquisition
- Automotive-Grade Reliability: AEC-Q100 qualified for demanding automotive applications
- Galvanic Isolation: Isolated module design protects sensitive circuitry and enhances system safety
- Flexible Interface: LVDS serial data interface for high-speed, noise-immune communication
- Wide Supply Range: Single supply operation from 3V to 5.5V simplifies power design
- Extended Temperature Range: Operates reliably from -40°C to 125°C for extreme environments
- Compact Surface Mount Package: 16-SOIC package optimizes board space
Ideal Applications
Perfect for automotive battery management systems, motor control, current sensing, voltage monitoring, and industrial automation requiring precision isolated measurements with long-term reliability.
Packaging Options
Available in Cut Tape (CT) for prototyping and low-volume production, or Tape & Reel (TR) for automated assembly and high-volume manufacturing.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Isolated Module |
| Number of Channels | 2 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 78k |
| Data Interface | LVDS, Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |

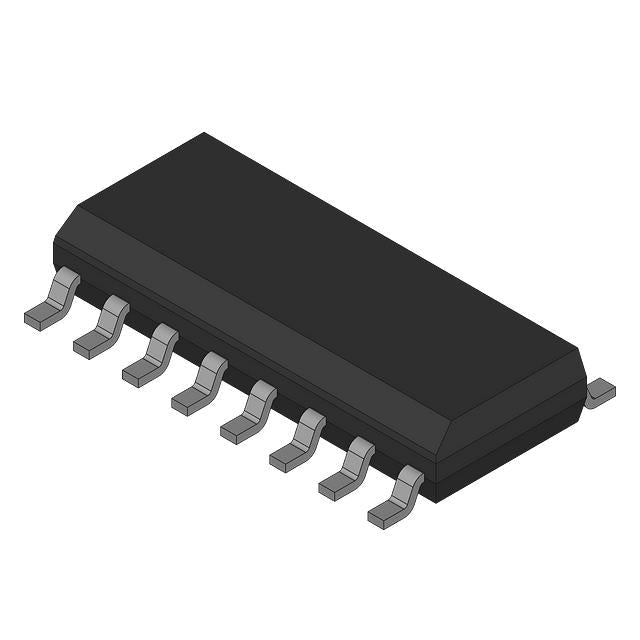

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
