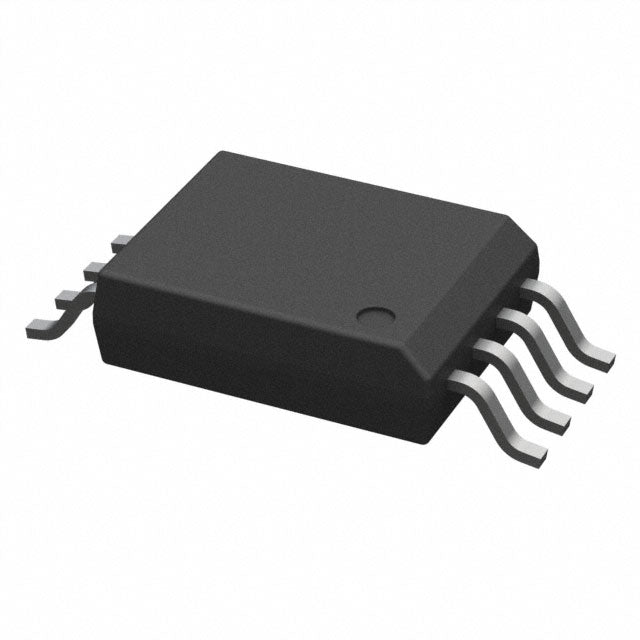

Texas Instruments AMC1306E05DWV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.26 | $8.26 |
| 15+ | $7.99 | $119.85 |
| 25+ | $7.82 | $195.50 |
| 50+ | $7.39 | $369.50 |
| 100+ | $6.52 | $652.00 |
| N+ | $1.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Type | Isolated Module |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 78k |
| Data Interface | CMOS, Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
AMC1306E05DWV - 16-Bit Isolated Delta-Sigma Modulator
The AMC1306E05DWV from Texas Instruments is a precision 16-bit isolated delta-sigma modulator designed for high-accuracy current and voltage sensing applications in industrial, automotive, and power management systems. With a 78kSPS sampling rate and reinforced isolation, this device delivers reliable performance in harsh environments from -40°C to 125°C.
Key Features & Benefits
- High-Resolution Sensing: 16-bit resolution ensures precise measurement accuracy for critical applications
- Fast Sampling: 78kSPS sampling rate enables real-time monitoring and control
- Reinforced Isolation: Protects sensitive circuitry in high-voltage environments
- Flexible Interface: CMOS and Serial data interfaces for easy system integration
- Wide Supply Range: 2.7V to 5.5V operation supports diverse power architectures
- Extended Temperature Range: -40°C to 125°C for automotive and industrial applications
- Compact Surface Mount Package: 8-SOIC package saves board space
- RoHS Compliant: Meets environmental standards for global distribution
Typical Applications
- Motor control and drive systems
- Solar inverters and power converters
- Battery management systems
- Industrial automation and process control
- Automotive current sensing
- Server and telecom power supplies
