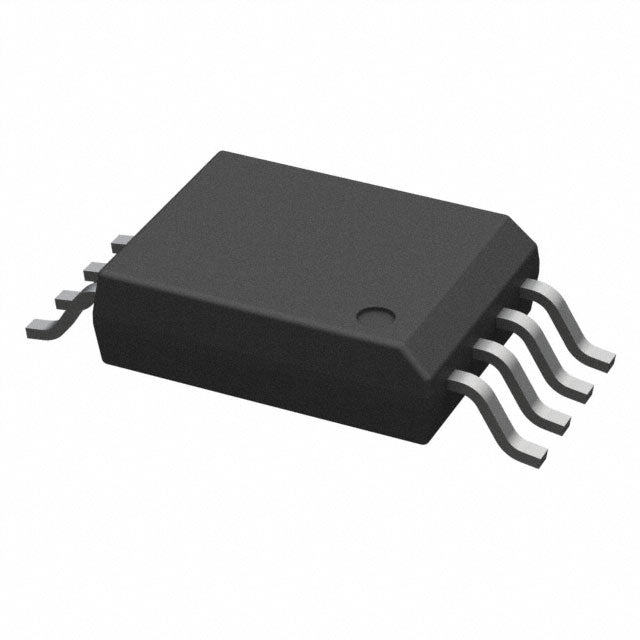

Texas Instruments AMC1306M25DWV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 29.60 | Dhs. 29.60 |
| 15+ | Dhs. 28.69 | Dhs. 430.35 |
| 25+ | Dhs. 28.06 | Dhs. 701.50 |
| 50+ | Dhs. 26.50 | Dhs. 1,325.00 |
| 100+ | Dhs. 23.39 | Dhs. 2,339.00 |
| N+ | Dhs. 4.68 | Price Inquiry |
Request Quote / Inquiry
AMC1306M25DWV - Precision Isolated Delta-Sigma Modulator
The AMC1306M25DWV from Texas Instruments is a high-precision 16-bit isolated delta-sigma modulator designed for demanding current and voltage sensing applications across industrial, automotive, medical, and telecommunications sectors. With reinforced isolation and exceptional linearity, this device enables accurate measurement in high-voltage environments while maintaining signal integrity.
Key Features & Benefits
- 16-bit resolution delivers precise analog-to-digital conversion for critical measurement applications
- 78 kSPS sampling rate ensures fast, real-time data acquisition
- Reinforced isolation protects sensitive circuitry in motor drives, solar inverters, and power supplies
- Wide supply voltage range (2.7V to 5.5V) offers flexible integration across diverse system architectures
- Extended temperature range (-40°C to 125°C) guarantees reliable operation in harsh industrial and automotive environments
- CMOS/Serial data interface simplifies integration with microcontrollers and DSPs
- Surface-mount 8-SOIC package enables compact PCB layouts and automated assembly
Typical Applications
- Shunt-based current sensing in motor control and inverter systems
- Isolated voltage measurement in power monitoring and energy metering
- High-side current sensing in battery management systems (BMS)
- Precision analog signal isolation in industrial automation and process control
Why Choose the AMC1306M25DWV?
Engineered for long lifecycle support and full traceability, the AMC1306M25DWV meets stringent RoHS and REACH compliance standards. Texas Instruments backs this device with comprehensive datasheets, application notes, and reference designs to accelerate your time-to-market.
All specifications are subject to change. Please refer to the official Texas Instruments datasheet for the most current information.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Type | Isolated Module |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 78k |
| Data Interface | CMOS, Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
