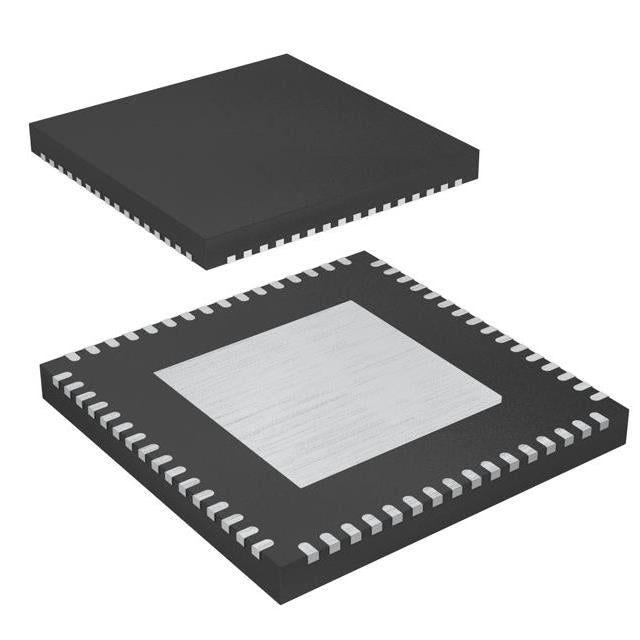

Microchip Technology ATMEGA169P-15MT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | SPI, UART/USART, USI |
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATMEGA169P-15MT is an 8-bit AVR microcontroller with an integrated LCD controller. It runs at 16MHz and operates from 2.7V to 5.5V. With 16KB flash and 1KB RAM, it is designed for applications requiring direct segment LCD driving. The 64-pin VFQFN package offers ample I/O, and features like brown-out detect, POR, PWM, and WDT ensure robust operation.
- Integrated LCD driver eliminates external display ICs.
- Wide voltage range (2.7V-5.5V) supports various power supplies.
- 64-pin package provides extensive I/O for complex designs.
- AVR architecture is well-documented with extensive libraries.
- Reliable operation in industrial temperature ranges.
LCD Display Panels
The integrated LCD driver directly interfaces with segment displays, making it perfect for digital meters and instrument clusters.
Smart Meters
With 16KB flash and LCD support, it can handle utility metering for electricity, water, or gas with local display.
Home Appliances
AVR core and PWM enable control of washing machine timers or microwave oven interfaces with LCD readouts.
Portable Medical Devices
Low power consumption and LCD support suit glucose meters or blood pressure monitors.
Industrial Panel Meters
The 64-pin package provides enough I/O for multiple sensors and display segments in process control.
Automotive Dashboard Clusters
Operating from -40°C to 85°C, it can drive simple dashboard displays for speed or fuel level.
- Q: What is the core of ATMEGA169P-15MT?
- A: It uses the AVR core running at 16MHz.
- Q: What is the supply voltage range?
- A: It operates from 2.7V to 5.5V.
- Q: How much flash memory does it have?
- A: It has 16KB of flash (8K x 16 bits).
- Q: Does it have an LCD controller?
- A: Yes, it includes an integrated LCD driver.
- Q: What package is available?
- A: It comes in a 64-pin VFQFN package.
