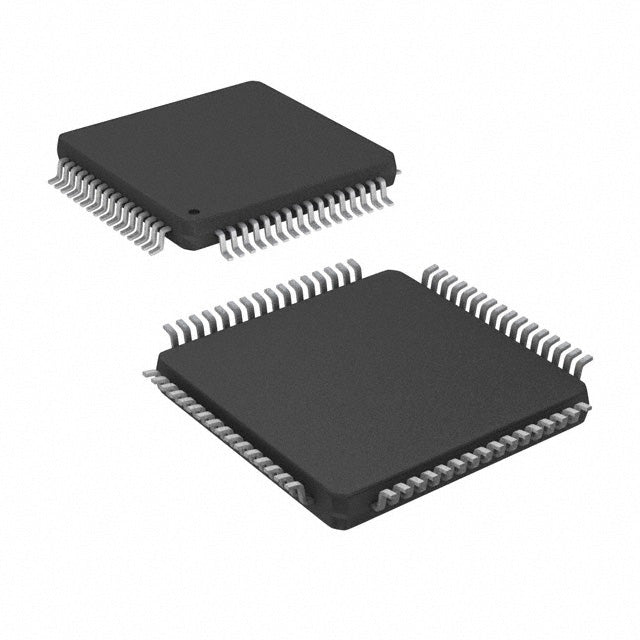

Microchip Technology ATMEGA169PA-AN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.56 | $16.56 |
| 15+ | $3.81 | $57.15 |
| 25+ | $3.73 | $93.25 |
| 50+ | $3.52 | $176.00 |
| 100+ | $3.11 | $311.00 |
| N+ | $0.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | Tray | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | SPI, UART/USART, USI |
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-TQFP (14x14) |
| Package / Case | 64-TQFP |
| ROHS |  |
The ATMEGA169PA-AN is an 8-bit AVR microcontroller from Microchip Technology, running at up to 16MHz. It features 16KB flash and 1KB RAM, with an integrated LCD controller. The device operates from 1.8V to 5.5V and is available in a 64-TQFP package. It includes brown-out detect/reset, POR, PWM, and WDT, making it suitable for metering, industrial, and consumer applications.
- Integrated LCD driver: Reduces external components for display applications.
- Wide voltage range: Supports both 3.3V and 5V systems.
- High-temperature rating: Operates up to 105°C for demanding environments.
- Mature AVR architecture: Extensive toolchain and community support.
Metering and Display Panels
The integrated LCD driver and 5.5V operation make it perfect for utility meters and industrial readouts.
Battery-Powered Instruments
With 1.8V minimum voltage and low-power modes, it extends battery life in handheld gauges.
Home Appliance Control
16KB flash and PWM outputs allow for motor speed control in fans and kitchen appliances.
Automotive Aftermarket
The 105°C rating supports under-hood sensors and dashboard display modules.
Portable Medical Devices
Reliable operation and LCD support enable simple glucose meters and thermometers.
HVAC Controllers
Wide voltage range and WDT ensure stable operation in thermostats and zone controllers.
- Q: What is the core of the ATMEGA169PA-AN?
- A: It uses the AVR core, running at up to 16MHz.
- Q: Does it have an LCD controller?
- A: Yes, it includes a built-in LCD driver for segment displays.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V, offering flexibility.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C.
