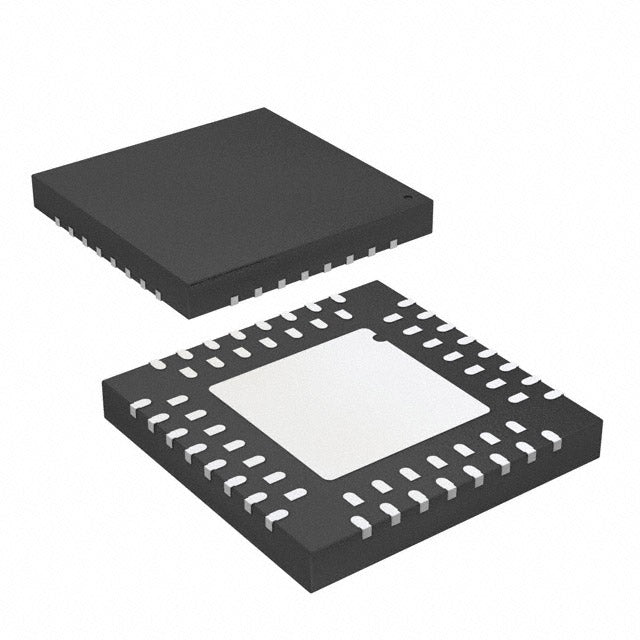

Microchip Technology ATMEGA169PA-MCH
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.08 | $16.08 |
| 15+ | $3.70 | $55.50 |
| 25+ | $3.62 | $90.50 |
| 50+ | $3.42 | $171.00 |
| 100+ | $3.02 | $302.00 |
| N+ | $0.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATmega |
| Packaging | Tray | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | SPI, UART/USART, USI |
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFN (7x7) |
| Package / Case | 64-VQFN Dual Rows, Exposed Pad |
| ROHS |  |
The Microchip ATMEGA169PA-MCH is a high-performance 8-bit AVR microcontroller designed for applications requiring efficient processing and direct LCD drive capability. Operating from 1.8V to 5.5V and up to 16MHz, it integrates 16KB of flash memory and 1KB of SRAM. The 64-VQFN package includes an exposed pad for thermal management, and the device features brown-out detection, power-on reset, PWM, and a watchdog timer for robust operation in demanding environments.
- Integrated LCD Driver: Directly drives segment LCDs without external ICs, reducing BOM cost and board space.
- Wide Voltage Range (1.8V-5.5V): Supports both 3.3V and 5V systems, simplifying power supply design.
- Low-Power AVR Core: Optimized for battery-powered devices, extending operational life.
- Robust Protection Features: Includes brown-out reset and watchdog timer for reliable operation in harsh environments.
Battery-Powered Metering Systems
The 1.8V minimum supply voltage and low-power AVR core enable long battery life in utility meters, while the integrated LCD driver directly interfaces with display panels.
Portable Medical Monitors
With a 16MHz clock and 16KB flash, it handles real-time vital sign sampling and drives compact LCD readouts, all within a small 64-VQFN footprint.
Industrial Process Displays
The built-in brown-out detection and watchdog timer ensure reliable operation in noisy industrial environments, while the LCD controller simplifies local status readouts.
Home Automation Controllers
PWM channels allow dimming and motor control, and the wide voltage range accommodates both 3.3V and 5V logic, simplifying system integration.
Automotive Aftermarket Gauges
Operating from -40°C to 85°C, it reliably drives segmented LCDs for speed or temperature displays, with the exposed pad aiding heat dissipation.
Smart Sensor Nodes
The 1K x 8 RAM and rich peripheral set support sensor fusion and local data processing, while the LCD provides immediate visual feedback.
- Q: What is the operating voltage range of the ATMEGA169PA-MCH?
- A: The supply voltage range is 1.8V to 5.5V, making it suitable for battery-powered and low-voltage applications.
- Q: Does this MCU include an LCD controller?
- A: Yes, it features an integrated LCD driver, ideal for direct segment LCD display interfacing.
- Q: What is the maximum clock speed?
- A: It operates at up to 16MHz, balancing performance with power efficiency.
- Q: What package is available?
- A: It comes in a 64-VQFN dual-row package with an exposed pad for improved thermal performance.
