Microchip Technology ATMEGA808-MFR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.10 | $1.10 |
| 15+ | $1.07 | $16.05 |
| 25+ | $1.04 | $26.00 |
| 50+ | $0.99 | $49.50 |
| 100+ | $0.87 | $87.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | megaAVR® 0, Functional Safety (FuSa) |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 27 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

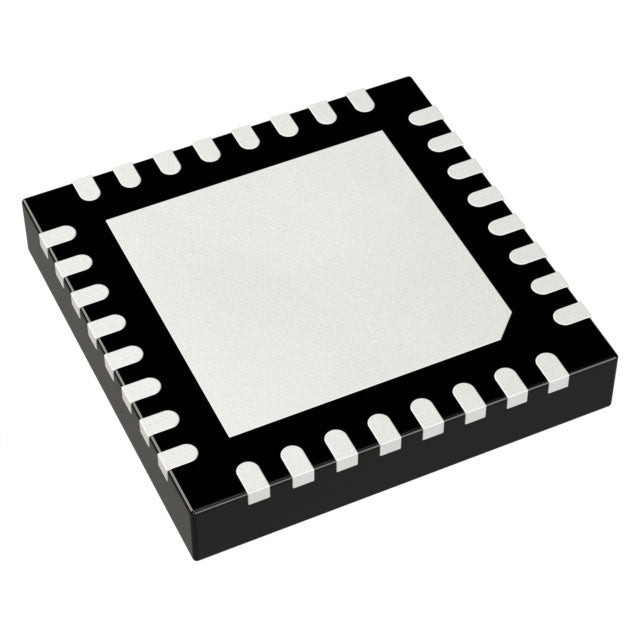

| Supplier Device Package | 32-VQFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATMEGA808-MFR is an 8-bit AVR microcontroller with 8KB flash and 1KB SRAM. It operates from 1.8V to 5.5V at up to 20MHz, featuring brown-out detection, power-on reset, and a watchdog timer. Housed in a 32-VFQFN package, it is designed for reliable operation from -40°C to 125°C, making it ideal for industrial and automotive applications.
- Wide voltage range (1.8V-5.5V) – simplifies power supply design and supports battery operation.
- High-temperature rating (125°C) – enables use in engine bays and industrial ovens.
- Integrated brown-out and watchdog – improves system reliability without external components.
- Compact 32-VFQFN package – saves PCB space for dense designs.
Battery-Powered Sensor Nodes
The 1.8V minimum supply and low-power sleep modes enable long-life operation in IoT sensors.
Industrial Control Panels
With a 125°C junction temperature rating and 20MHz throughput, it handles real-time control loops in harsh environments.
Automotive Body Electronics
Brown-out detection and POR ensure reliable reset behavior during cranking voltage dips.
Portable Medical Devices
The 8KB flash and 1KB SRAM are sufficient for monitoring algorithms while maintaining small form factor.
Smart Home Hubs
Multiple communication protocols can be implemented using the flexible I/O and timers.
LED Lighting Controllers
PWM outputs and 20MHz speed allow smooth dimming and color mixing.
- Q: What is the operating voltage range of the ATMEGA808-MFR?
- A: It operates from 1.8V to 5.5V, suitable for battery and 3.3V/5V systems.
- Q: What is the maximum clock speed?
- A: The AVR core runs up to 20MHz.
- Q: What package is available?
- A: It comes in a 32-VFQFN exposed pad package.
- Q: Does it include a watchdog timer?
- A: Yes, it has WDT, brown-out detect/reset, and POR.
- Q: What is the temperature range?
- A: It is rated for -40°C to 125°C (TA).
