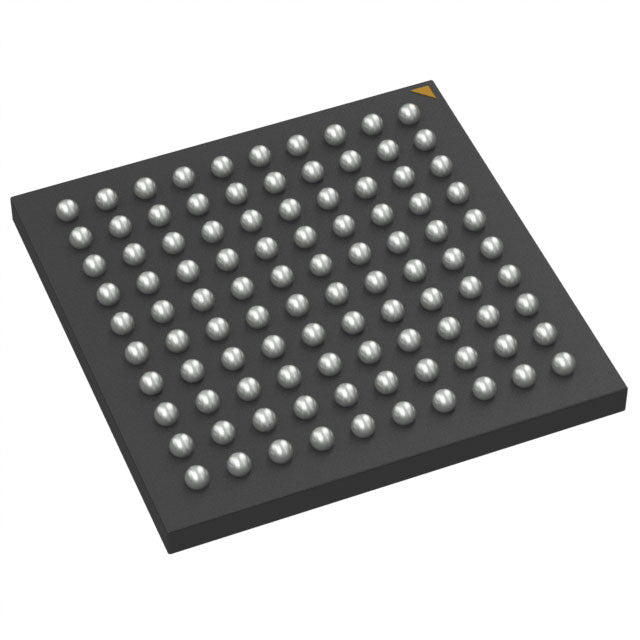

Microchip Technology ATSAM3N1CB-CUR
Normaler Preis
$15.32
Normaler Preis
$3.83
Verkaufspreis
$15.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.32 | $15.32 |
| 15+ | $3.52 | $52.80 |
| 25+ | $3.45 | $86.25 |
| 50+ | $3.26 | $163.00 |
| 100+ | $2.87 | $287.00 |
| N+ | $0.57 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM3N |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (9x9) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The Microchip ATSAM3N1CB-CUR is a 32-bit ARM Cortex-M3 MCU at 48MHz. It provides 64KB flash and 8KB RAM in a 100-TFBGA package. With a supply range of 1.62V to 3.6V, it integrates DMA, PWM, and multiple communication interfaces for versatile embedded designs.
- 64KB flash allows larger application code.
- ARM Cortex-M3 architecture ensures software portability.
- Low voltage operation reduces power consumption.
- Compact BGA package ideal for space-limited PCBs.
Embedded Control Systems
64KB flash provides ample space for complex control algorithms.
Data Logging
DMA and multiple serial interfaces enable efficient data capture to external storage.
Portable Instruments
Low power consumption and small BGA package suit handheld measurement tools.
Automotive Infotainment
Reliable operation and rich peripherals support basic infotainment functions.
Security Systems
Fast GPIO and timers handle access control and alarm monitoring.
Robotics
PWM outputs and ADC inputs allow precise motor and servo control.
- Q: How much flash memory does it have?
- A: It has 64KB of flash and 8KB of RAM.
- Q: What is the core speed?
- A: The ARM Cortex-M3 core runs at 48MHz.
- Q: What is the operating temperature?
- A: It operates from -40°C to 85°C.
- Q: Does it support DMA?
- A: Yes, it includes DMA, PWM, and WDT peripherals.
Base Product Number ：
ATSAM3N1CB
ATSAM3N1CB-CUR.pdf
