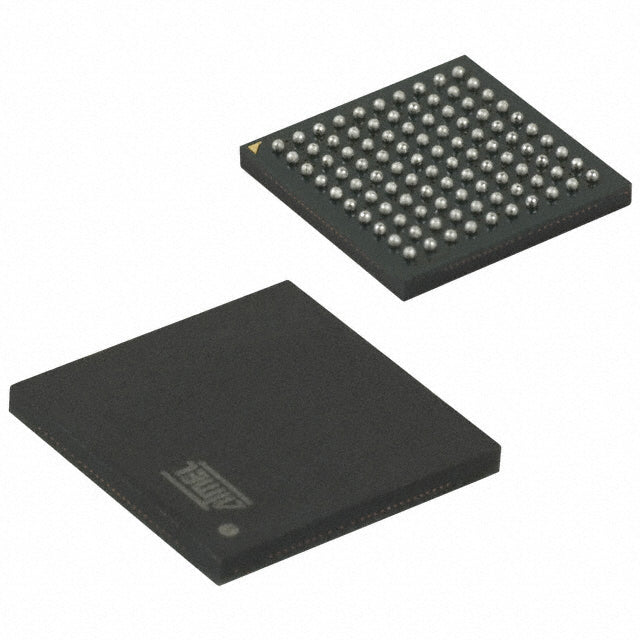

Microchip Technology ATSAM3S8CA-CUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.60 | $8.60 |
| 15+ | $8.33 | $124.95 |
| 25+ | $8.15 | $203.75 |
| 50+ | $7.69 | $384.50 |
| 100+ | $6.79 | $679.00 |
| N+ | $1.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM3S |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 15x10/12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (9x9) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The Microchip ATSAM3S8CA-CUR is a high-performance 32-bit microcontroller based on the ARM Cortex-M3 core. Operating at 64MHz, it offers 512KB flash and 64KB SRAM. With a wide supply voltage range and a compact 100-TFBGA package, it is designed for advanced embedded applications requiring significant processing power and memory.
- Powerful ARM Cortex-M3 Core: 64MHz performance for complex applications.
- Large Memory Capacity: 512KB flash and 64KB SRAM for extensive code and data.
- Wide Voltage Range: 1.62V to 3.6V for flexible power supply design.
- Rich Peripheral Set: Includes I2S, DMA, PWM, and multiple communication interfaces.
Industrial Automation Controllers
The 64MHz Cortex-M3 core and 512KB flash provide ample resources for complex PLC and HMI applications.
Smart Grid and Energy Meters
Low power consumption and advanced analog peripherals enable precise energy measurement and communication.
Medical Diagnostic Equipment
High processing power and rich connectivity options support portable diagnostic devices with graphical displays.
Building Security Systems
Multiple communication interfaces and DMA facilitate integration with sensors and central control panels.
Internet of Things (IoT) Gateways
With I2S and multiple serial ports, it can aggregate data from various sensors and communicate to the cloud.
Point-of-Sale (POS) Terminals
Fast processing and large memory support secure transactions and user interface management.
- Q: What core does this MCU use?
- A: It is based on the ARM Cortex-M3 processor running at 64MHz.
- Q: How much flash memory is available?
- A: It has 512KB of flash memory and 64KB of SRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V, supporting low-power designs.
- Q: What package is this device available in?
- A: It comes in a 100-TFBGA package.
