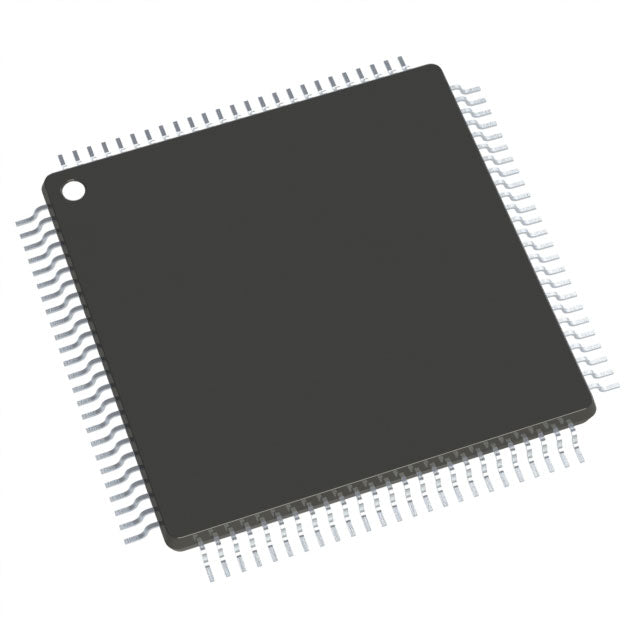

Microchip Technology ATSAM4CMS16CC-AUT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.76 | $34.76 |
| 15+ | $7.99 | $119.85 |
| 25+ | $7.82 | $195.50 |
| 50+ | $7.39 | $369.50 |
| 100+ | $6.52 | $652.00 |
| N+ | $1.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4CM |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Dual-Core |
| Speed | 120MHz |
| Connectivity | EBI/EMI, I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 57 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 6x10b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TQFP (14x14) |
| Package / Case | 100-TQFP |
| ROHS |  |
The Microchip ATSAM4CMS16CC-AUT is a 32-bit ARM Cortex-M4F microcontroller with a floating-point unit, running at 120MHz. It offers 1MB flash and 128KB SRAM, along with an integrated LCD controller, DMA, brown-out detection, POR, PWM, and WDT. Packaged in a 100-TQFP, it operates from 1.62V to 3.6V and -40°C to 85°C, making it a versatile choice for display-centric and signal-processing applications.
- Integrated LCD controller: Simplifies display design and reduces BOM cost.
- Floating-point unit: Accelerates mathematical computations for signal processing.
- 1MB flash: Supports large application code and data storage.
- 100-TQFP package: Easier PCB routing and prototyping compared to BGA.
Smart Meters with Display
The integrated LCD controller and Cortex-M4F FPU enable efficient calculation and display of energy consumption data.
Industrial HMI Panels
120MHz processing with FPU accelerates graphical rendering and touch response in operator interfaces.
Portable Instrumentation
Low power consumption and 1.62V operation extend battery life in handheld multimeters and oscilloscopes.
Building Management Systems
DMA and PWM support HVAC actuator control and sensor monitoring in smart buildings.
Medical Diagnostic Devices
Floating-point unit handles complex signal processing for glucose meters and pulse oximeters.
Point-of-Sale Terminals
LCD support and robust security features make it ideal for payment and inventory systems.
- Q: What is the core processor of the ATSAM4CMS16CC-AUT?
- A: It uses an ARM Cortex-M4F core with floating-point unit at 120MHz.
- Q: How much memory is available?
- A: It includes 1MB flash and 128KB SRAM.
- Q: What is the operating temperature range?
- A: It operates from -40°C to +85°C (TA).
- Q: What package is this MCU in?
- A: It comes in a 100-TQFP package.
- Q: Does it have an LCD controller?
- A: Yes, it integrates an LCD controller, making it suitable for display applications.
