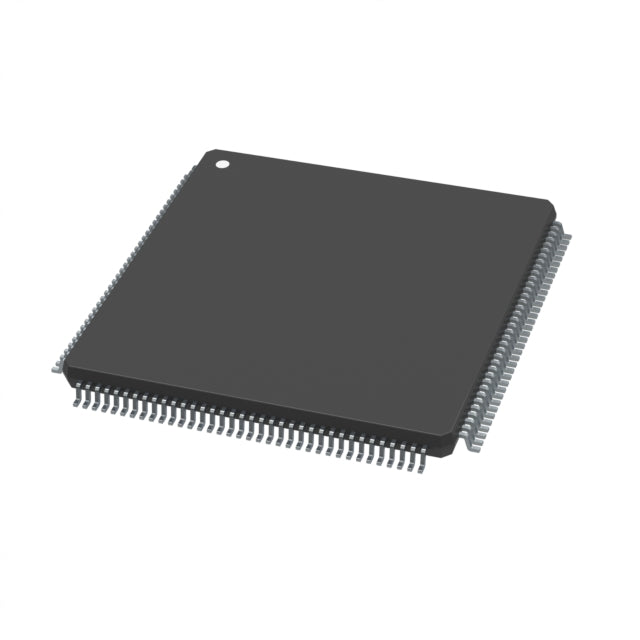

Microchip Technology ATSAM4E8EB-ANR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.74 | $9.74 |
| 15+ | $9.43 | $141.45 |
| 25+ | $9.23 | $230.75 |
| 50+ | $8.71 | $435.50 |
| 100+ | $7.69 | $769.00 |
| N+ | $1.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4E |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 117 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The ATSAM4E8EB-ANR is a high-performance 32-bit MCU from Microchip Technology based on the ARM Cortex-M4 core with FPU. It operates at up to 120MHz, providing exceptional processing power for demanding applications. The device features 512KB Flash and 128KB RAM, along with advanced peripherals including DMA, PWM, and Brown-out Detect/Reset. Packaged in a 144-LQFP, it operates from -40°C to 105°C.
- High-speed Cortex-M4: 120MHz with FPU accelerates math-intensive tasks.
- Large memory capacity: 512KB Flash and 128KB RAM support complex firmware.
- Extended temperature: 105°C rating enables harsh environment use.
- Rich peripheral set: DMA and PWM reduce CPU overhead.
Industrial IoT Gateways
The 120MHz Cortex-M4 with 512KB Flash handles MQTT and TLS stacks efficiently.
Motor Control with Safety
High-speed PWM and DMA enable field-oriented control with SIL2 safety functions.
Smart Energy Meters
Large memory and 105°C rating support advanced metering and power quality analysis.
Medical Imaging
FPU accelerates signal processing for ultrasound and patient monitoring.
Robotics
Multiple timers and communication interfaces coordinate servo loops and sensor fusion.
Automotive Body Electronics
Wide voltage range and robust peripherals suit LIN/CAN body controllers.
- Q: What is the core processor?
- A: It uses an ARM Cortex-M4 core with FPU.
- Q: What is the maximum clock speed?
- A: It operates at up to 120MHz.
- Q: How much Flash and RAM does it have?
- A: It includes 512KB Flash and 128KB RAM.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C.
- Q: What package is available?
- A: It comes in a 144-LQFP package.
