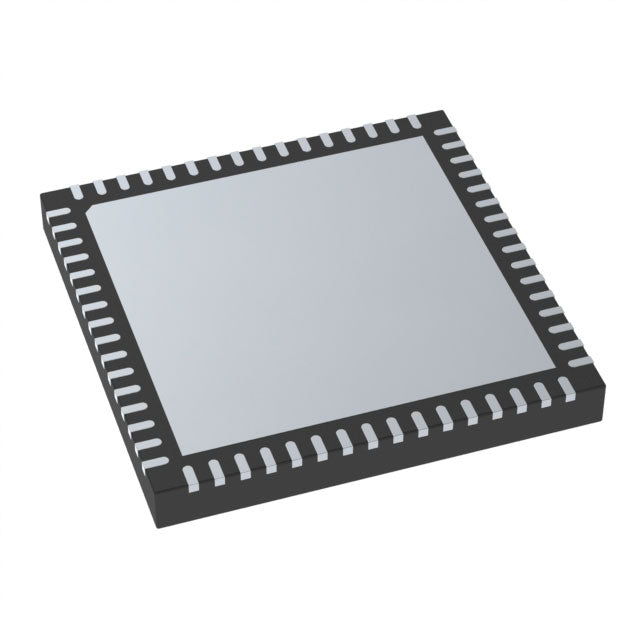

Microchip Technology ATSAM4LS2BA-MUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.37 | $6.37 |
| 15+ | $6.17 | $92.55 |
| 25+ | $6.04 | $151.00 |
| 50+ | $5.70 | $285.00 |
| 100+ | $5.03 | $503.00 |
| N+ | $1.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4L |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.68V ~ 3.6V |
| Data Converters | A/D 7x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATSAM4LS2BA-MUR is an ultra-low-power 32-bit MCU built on the ARM Cortex-M4 core. Operating at 48MHz with a supply range of 1.68V to 3.6V, it balances performance and energy efficiency for battery-operated applications. It features 128KB flash, 32KB RAM, and a rich peripheral set including I2S, DMA, PWM, and multiple serial interfaces. The 64-VFQFN package makes it a compact choice for IoT, medical, and audio devices.
- Ultra-Low Power Consumption: The Cortex-M4 core with sleep modes and 1.68V operation extends battery life in portable devices.
- Integrated I2S for Audio: Direct interface to audio codecs simplifies hardware design and reduces BOM cost.
- High Memory Density: 128KB flash and 32KB RAM support complex applications without external memory.
- DMA Efficiency: Peripheral-to-memory transfers reduce CPU load, enabling more time in low-power states.
IoT Sensor Nodes
The ultra-low-power Cortex-M4 core with 1.68V operation enables years of battery life in wireless sensors collecting temperature, humidity, or pressure data.
Portable Medical Devices
With 32KB RAM and DMA, it can process biometric signals (ECG/EEG) in real time while maintaining low power consumption for wearable monitors.
Audio Processing
The integrated I2S interface and DSP instructions allow implementation of voice triggers, noise cancellation, and audio playback in smart speakers or hearing aids.
Industrial Data Loggers
Its wide voltage range and robust peripherals (PWM, WDT) make it reliable for logging vibration or temperature data in factory automation equipment.
Smart Home Controllers
The 128KB flash supports complex communication stacks (Zigbee, Thread) while the DMA handles sensor polling, reducing CPU wake-up time.
Battery Management Systems
Multiple ADC channels and brown-out detection enable accurate cell voltage monitoring and protection in portable power tools.
- Q: What core does the ATSAM4LS2BA-MUR use?
- A: It is based on the ARM Cortex-M4 processor running at up to 48MHz, offering DSP instructions for signal processing.
- Q: What is the operating voltage range?
- A: It operates from 1.68V to 3.6V, making it suitable for battery-powered and energy-harvesting devices.
- Q: How much flash and RAM does it have?
- A: It provides 128KB flash and 32KB RAM, sufficient for complex firmware and real-time data buffering.
- Q: Does it support audio interfaces?
- A: Yes, it includes an I2S peripheral for direct connection to audio codecs and digital microphones.
- Q: What package is offered?
- A: It comes in a 64-VFQFN exposed pad package, ideal for compact IoT nodes and wearable devices.
