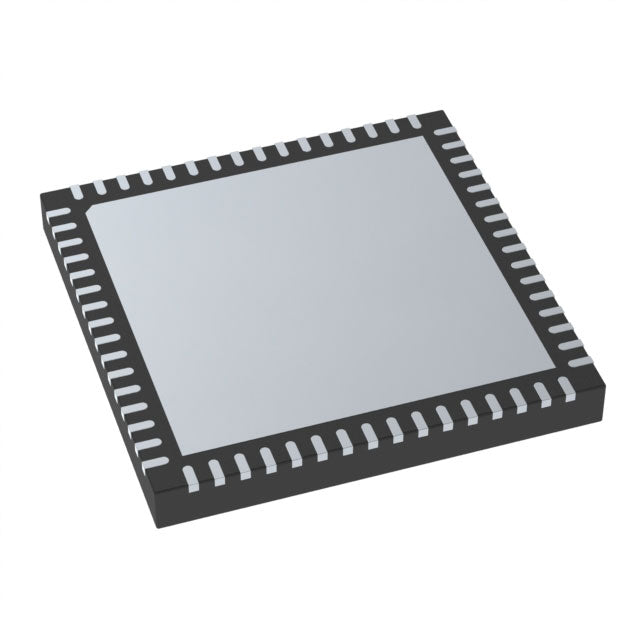

Microchip Technology ATSAM4SD16BA-MU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.84 | $27.84 |
| 15+ | $6.40 | $96.00 |
| 25+ | $6.26 | $156.50 |
| 50+ | $5.92 | $296.00 |
| 100+ | $5.22 | $522.00 |
| N+ | $1.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4S |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 11x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The ATSAM4SD16BA-MU from Microchip Technology is a high-performance ARM Cortex-M4 microcontroller. It features 1MB flash and 160KB RAM, running at 120MHz for demanding applications. The 64-VFQFN package offers a compact footprint. With a wide voltage range and robust peripheral set, it is designed for industrial and medical applications.
- High-speed 120MHz core: Delivers fast processing for real-time applications.
- Large 1MB flash: Supports complex firmware and over-the-air updates.
- Low voltage operation: 1.62V to 3.6V for energy-efficient designs.
- Rich DMA and PWM: Enables efficient data movement and motor control.
Industrial Automation
120MHz processing and 1MB flash allow complex control algorithms and data logging in PLCs.
Medical Devices
High reliability and 160KB RAM support real-time patient monitoring and diagnostic equipment.
Networking Equipment
Fast execution and DMA enable efficient packet processing in embedded network switches.
Consumer Electronics
Rich peripherals and low voltage operation suit smart home controllers and appliances.
Robotics
High-speed PWM and multiple timers provide precise motion control for robotic arms.
Data Acquisition Systems
Large memory and fast ADC interfacing handle high-throughput sensor data collection.
- Q: What is the maximum speed?
- A: The ATSAM4SD16BA-MU operates at 120MHz.
- Q: How much flash memory does it have?
- A: It provides 1MB of flash memory.
- Q: What is the supply voltage?
- A: It runs from 1.62V to 3.6V.
- Q: What package is this?
- A: It comes in a 64-VFQFN exposed pad package.
- Q: What is the temperature range?
- A: It is rated for -40°C to 85°C.
