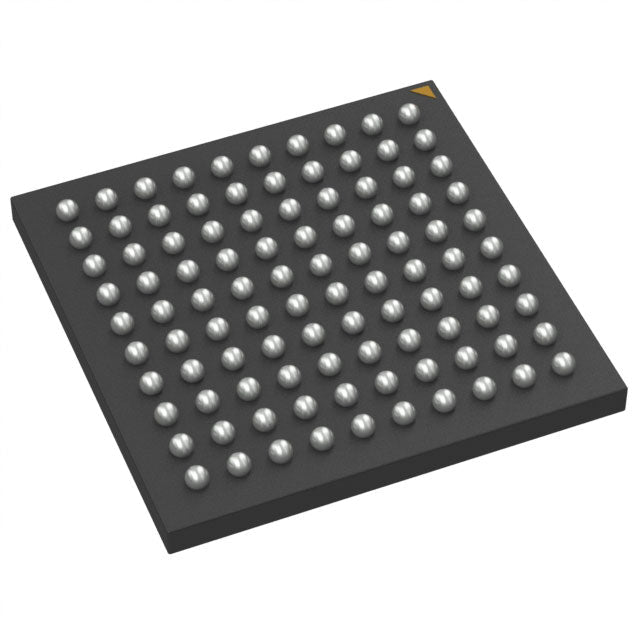

Microchip Technology ATSAM4SD16CB-CN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $31.36 | $31.36 |
| 15+ | $7.21 | $108.15 |
| 25+ | $7.06 | $176.50 |
| 50+ | $6.66 | $333.00 |
| 100+ | $5.88 | $588.00 |
| N+ | $1.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM4S |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (9x9) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The ATSAM4SD16CB-CN is a 32-bit MCU from Microchip, featuring an ARM Cortex-M4 core at 120MHz. With 1MB flash and 160KB RAM, it provides ample resources for advanced embedded applications. Its 100-TFBGA package and wide voltage range make it a versatile choice for industrial and consumer products.
- Efficient DSP Capabilities: Cortex-M4 with FPU accelerates signal processing algorithms.
- Ample Storage: 1MB flash supports large application code and data tables.
- Compact Footprint: 100-TFBGA saves PCB space for miniaturized designs.
- Robust Operation: 105°C max temperature and brown-out detection enhance field reliability.
Robotics Controllers
The 120MHz Cortex-M4 with DMA handles multiple servo loops and sensor fusion in real time.
Smart Home Hubs
Its 1MB flash stores complex protocol stacks (Zigbee, Thread) while maintaining low power.
Data Acquisition Systems
High-speed ADC with DMA transfers samples to RAM without CPU intervention, enabling high-throughput logging.
Industrial IoT Edge Nodes
Wide voltage range and industrial temp rating make it reliable in factory floor environments.
Portable Medical Monitors
Low-voltage operation and small TFBGA package support compact, battery-operated devices.
Test & Measurement Equipment
Precise PWM and timer features generate accurate trigger signals for lab instruments.
- Q: What is the core architecture of this MCU?
- A: It uses the ARM Cortex-M4 core with FPU, running at 120MHz.
- Q: What is the operating voltage range?
- A: It supports 1.62V to 3.6V, allowing flexible power supply design.
- Q: How much memory is available?
- A: It has 1MB program flash and 160KB SRAM.
- Q: What package is this variant?
- A: It is housed in a 100-TFBGA package, slightly different from the CFN version.
- Q: Is it suitable for automotive applications?
- A: Yes, with -40°C to 105°C operation and robust peripherals, it fits automotive body control.
