Microchip Technology ATSAMC21G16A-ANT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.71 | $10.71 |
| 15+ | $2.47 | $37.05 |
| 25+ | $2.41 | $60.25 |
| 50+ | $2.28 | $114.00 |
| 100+ | $2.01 | $201.00 |
| N+ | $0.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM C21, Functional Safety (FuSa) |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT |
| Number of I/O | 38 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 14x12b, 2x16b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

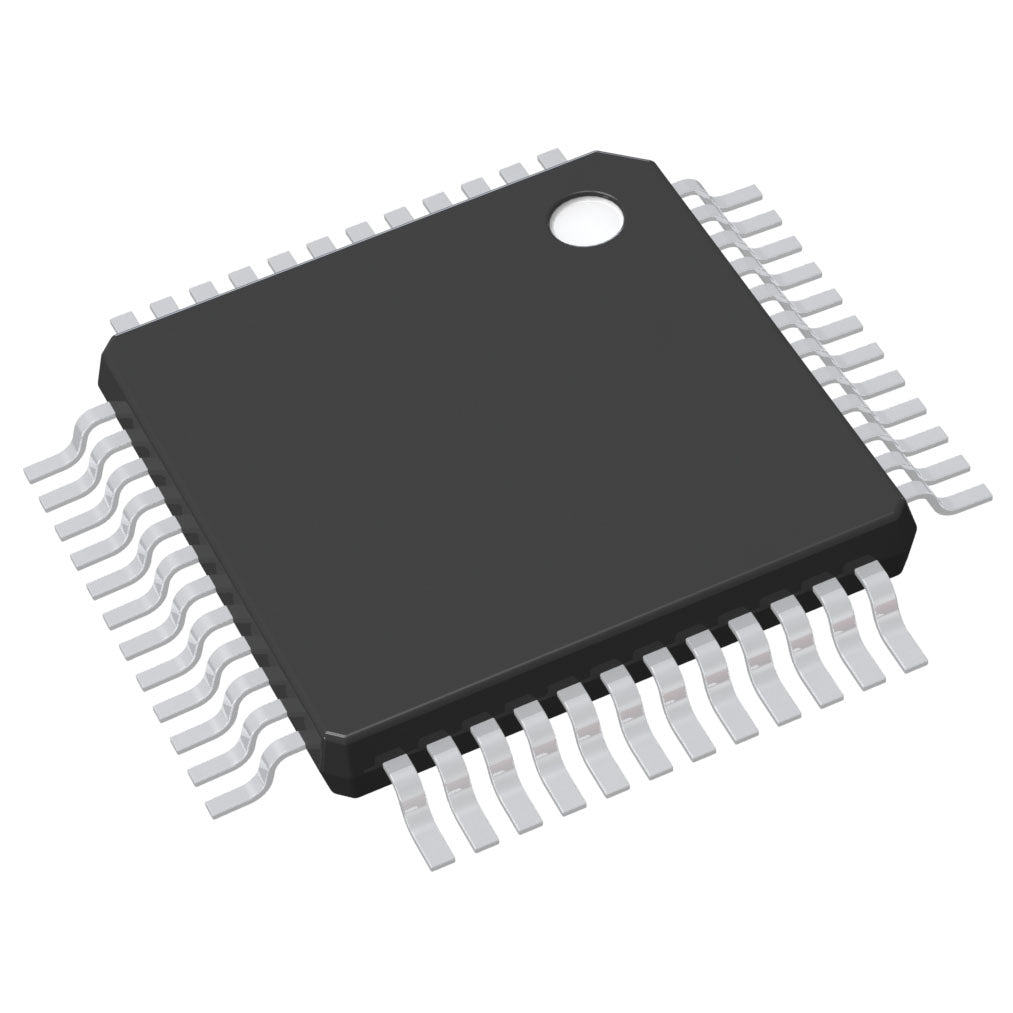

| Supplier Device Package | 48-TQFP (7x7) |
| Package / Case | 48-TQFP |
| ROHS |  |
The Microchip ATSAMC21G16A-ANT is a robust 32-bit MCU based on the ARM Cortex-M0+ core. It operates at 48MHz with 64KB flash and 8KB RAM. Designed for harsh environments, it supports 2.7V-5.5V and -40°C to 105°C. The 48-TQFP package includes DMA, brown-out detect, POR, and WDT for reliable industrial and automotive use.
- High-speed 48MHz Cortex-M0+ core accelerates control loops.
- Wide voltage range (2.7V-5.5V) provides design flexibility.
- Extended temperature range (-40°C to 105°C) suits demanding environments.
- Integrated DMA and WDT enhance system reliability and performance.
Automotive Control Units
With 48MHz performance and 105°C rating, it handles real-time control in engine management.
Industrial Motor Control
PWM and DMA enable precise control of 3-phase motors in factory equipment.
Robotics
The 5.5V supply simplifies interfacing with sensors and actuators in robotic arms.
Power Tools
High-temperature tolerance and WDT ensure reliable operation in handheld drills.
Smart Agriculture Sensors
Robust I/O and low power consumption support field-deployed soil monitors.
HVAC Systems
DMA and brown-out detection provide stable operation in variable-speed fan controllers.
- Q: What is the core processor?
- A: It uses the ARM Cortex-M0+ core at 48MHz.
- Q: What is the operating voltage?
- A: It operates from 2.7V to 5.5V.
- Q: How much flash memory does it have?
- A: It has 64KB flash and 8KB RAM.
- Q: What is the temperature range?
- A: It is rated for -40°C to 105°C.
- Q: What package is available?
- A: It comes in a 48-TQFP package.
