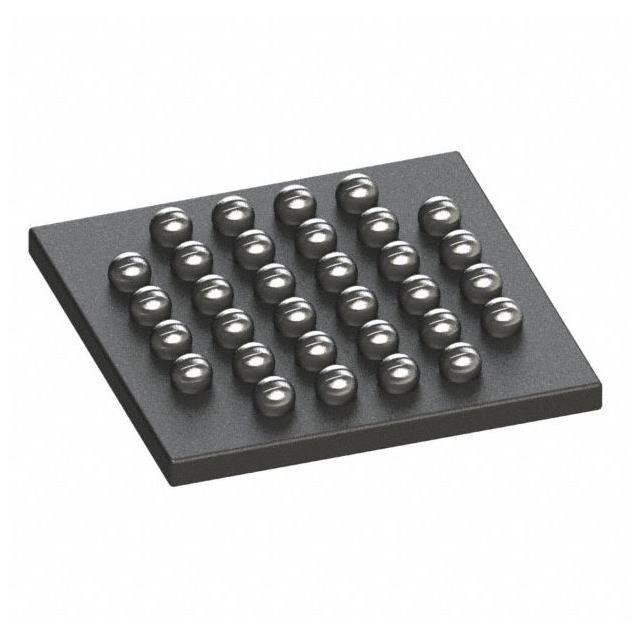

Microchip Technology ATSAML10E15A-UUT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM L10 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M23 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V |
| Data Converters | A/D 10x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-WLCSP (2.79x2.79) |
| Package / Case | 32-XFBGA, WLCSP |
| ROHS |  |
The ATSAML10E15A-UUT is a secure 32-bit microcontroller from Microchip, featuring an ARM Cortex-M23 core at 32MHz. With 32KB flash and 8KB SRAM, it balances code space and data handling. Its 1.62V-3.63V range and WLCSP package make it ideal for space-constrained, battery-powered devices. TrustZone security, along with POR, BOD, and WDT, ensures reliable and protected operation.
- 32KB flash – enough for full protocol stacks and application code.
- TrustZone – provides hardware-grade security for IoT devices.
- Ultra-small WLCSP – enables miniaturized product designs.
- Low power consumption – extends battery life in portable applications.
Smart Home Controllers
32KB flash allows for complex Zigbee/Thread stacks, while TrustZone protects network keys.
Asset Trackers
Low power and small size enable GPS/GNSS trackers with long battery life.
Secure Authentication
TrustZone isolates cryptographic operations for anti-counterfeiting in consumables.
Portable Medical
8KB SRAM supports real-time signal processing for glucose monitors.
Industrial IoT
DMA and PWM handle sensor excitation and data logging in factory automation.
Consumer Electronics
WLCSP package fits in earbuds and smart watches for touch and audio control.
- Q: How much flash does the ATSAML10E15A-UUT have?
- A: It has 32KB flash and 8KB SRAM.
- Q: What is the core speed?
- A: It runs at 32MHz with an ARM Cortex-M23 core.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.63V.
- Q: What package is used?
- A: It is available in a 32-XFBGA WLCSP package.
- Q: Does it support TrustZone?
- A: Yes, it includes ARM TrustZone for secure applications.
