Microchip Technology ATSAML11E14A-UUT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SAM L11 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M23 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V |
| Data Converters | A/D 10x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

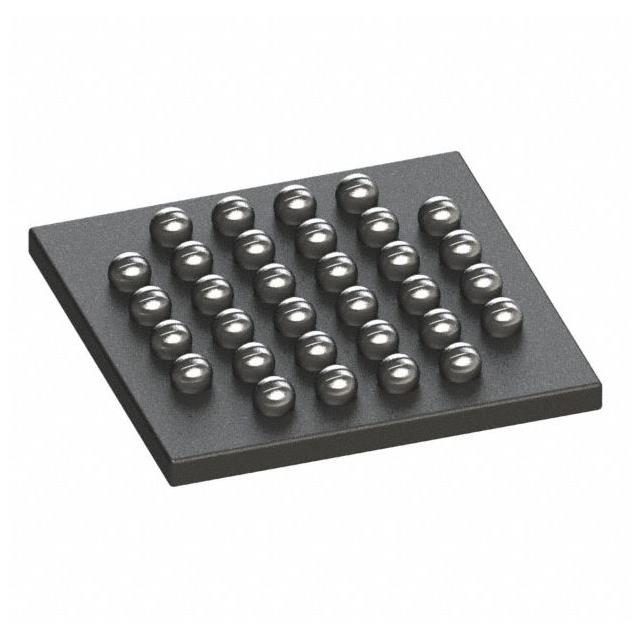

| Supplier Device Package | 32-WLCSP (2.79x2.79) |
| Package / Case | 32-XFBGA, WLCSP |
| ROHS |  |
The ATSAML11E14A-UUT is a secure microcontroller from Microchip, built on the ARM Cortex-M23 core at 32MHz. It offers 16KB flash and 8KB SRAM, with an integrated security sub-system for cryptographic operations. Operating from 1.62V to 3.63V, it comes in a 32-XFBGA WLCSP package. This MCU is designed for applications requiring hardware-level security and low power consumption.
- Integrated security sub-system – hardware crypto for AES, ECC, and RSA.
- TrustZone – isolates secure and non-secure code.
- 8KB SRAM – more data memory for complex protocols.
- Ultra-compact WLCSP – saves board space.
- Low power – ideal for battery-operated devices.
Secure IoT Nodes
Dedicated security sub-system provides hardware crypto acceleration for TLS/DTLS.
Smart Meters
TrustZone and secure boot protect metering data and tamper detection.
Medical Sensors
8KB SRAM supports real-time ECG filtering; security protects patient data.
Access Control
Secure key storage enables biometric locks and smart card readers.
Industrial Crypto
Hardware AES/ECC accelerates secure firmware updates in PLCs.
Consumer IoT
Small WLCSP and low power fit smart plugs and light switches.
- Q: What is the difference between ATSAML11 and ATSAML10?
- A: The SAML11 has 8KB SRAM (vs 4KB) and adds a security sub-system.
- Q: What core does it use?
- A: It uses an ARM Cortex-M23 core at 32MHz.
- Q: How much flash does it have?
- A: It has 16KB flash.
- Q: What is the package?
- A: It is a 32-XFBGA WLCSP package.
- Q: What voltage does it need?
- A: It operates from 1.62V to 3.63V.
