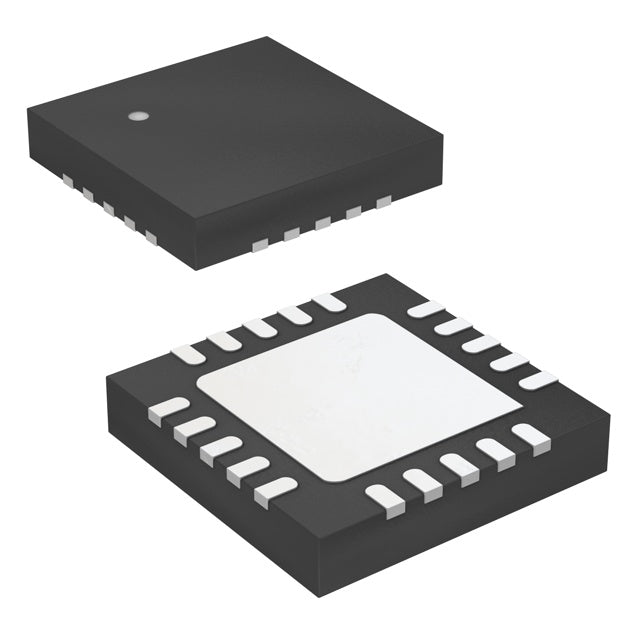

Microchip Technology ATTINY84-15MZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 8KB (4K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-WQFN (4x4) |
| Package / Case | 20-WFQFN Exposed Pad |
| ROHS |  |
The Microchip ATTINY84-15MZ is an 8-bit AVR microcontroller offering 8KB of flash and 512 bytes of SRAM in a compact 20-WFQFN package. It operates at up to 16MHz and supports a voltage range of 2.7V to 5.5V. With integrated PWM, WDT, and brown-out detection, it is designed for low-power and space-constrained applications.
- Ultra-Compact Package: 20-WFQFN with exposed pad for thermal management.
- Low Power Consumption: Suitable for battery-operated devices.
- High-Speed AVR Core: 16MHz performance for time-critical tasks.
- Robust Protection: Includes brown-out detect and WDT for system reliability.
Sensor Nodes
The 8KB flash and 512 bytes RAM are sufficient for reading and transmitting data from temperature or humidity sensors in IoT nodes.
Motor Control
With PWM and a 16MHz clock, it can drive small DC motors in toys or drones with precise speed control.
Portable Instruments
Low power consumption and 2.7V operation enable battery-powered multimeters and handheld testers.
LED Matrix Displays
Use the GPIO and PWM to drive small LED matrices for signage or status indicators.
Security Systems
The WDT and brown-out reset ensure reliable operation in alarm panels and access control units.
Wearable Devices
The compact 20-WFQFN package and low power make it suitable for fitness bands and smart watches.
- Q: What is the core architecture of the ATTINY84-15MZ?
- A: It uses the AVR 8-bit core.
- Q: What is the maximum clock speed?
- A: It runs at up to 16MHz.
- Q: How much flash memory does it have?
- A: It has 8KB of flash memory.
- Q: What package is it available in?
- A: It comes in a 20-WFQFN exposed pad package.
