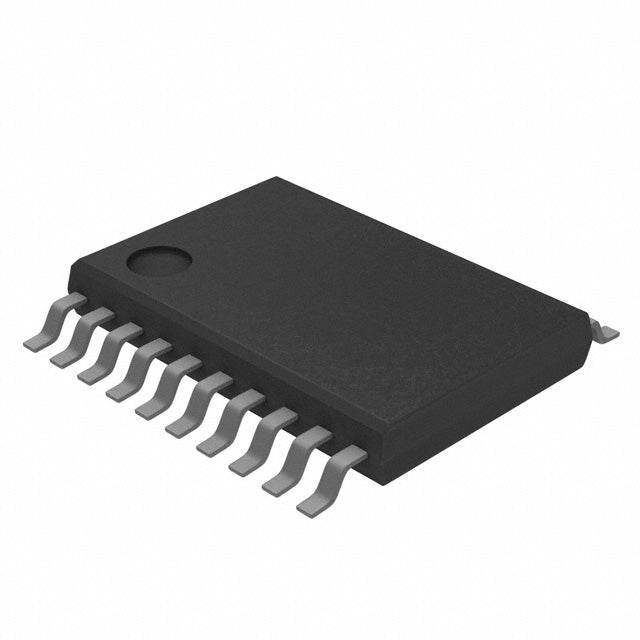

Microchip Technology ATTINY861-15XZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 8KB (4K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 11x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The ATTINY861-15XZ is a low-power 8-bit AVR microcontroller from Microchip, packaged in a space-saving 20-TSSOP. It runs at up to 16MHz with a 2.7V to 5.5V supply. With 8KB flash, 512 bytes RAM, and built-in PWM, WDT, and Brown-out Reset, it delivers efficient control for automotive and industrial sensing applications.
- Low-voltage operation (2.7V) supports battery-powered designs.
- High-temperature range (-40°C to 125°C) suits automotive environments.
- 8KB flash provides ample code space for complex algorithms.
- Compact TSSOP-20 package minimizes board footprint.
Sensor Signal Conditioning
The 16MHz AVR core and 512 bytes RAM allow real-time processing of analog sensor data.
Battery Management Systems
Its 2.7V minimum supply and low-power modes extend battery life in portable monitors.
LED Dimming and Color Control
PWM outputs enable smooth dimming in architectural lighting fixtures.
Automotive Interior Lighting
With -40°C to 125°C operation, it handles under-dash lighting control reliably.
Small Appliance Timers
8KB flash supports complex timing routines for coffee makers and microwaves.
Industrial Proximity Switches
WDT and Brown-out Reset ensure fail-safe operation in noisy factory environments.
- Q: What is the supply voltage range?
- A: It operates from 2.7V to 5.5V, suitable for 3V and 5V logic systems.
- Q: How much flash memory does it have?
- A: It provides 8KB of flash (4K x 16 words) for program storage.
- Q: What package is this variant?
- A: It comes in a 20-TSSOP package, ideal for compact designs.
- Q: Does it support PWM?
- A: Yes, it includes PWM channels for motor and lighting control.
