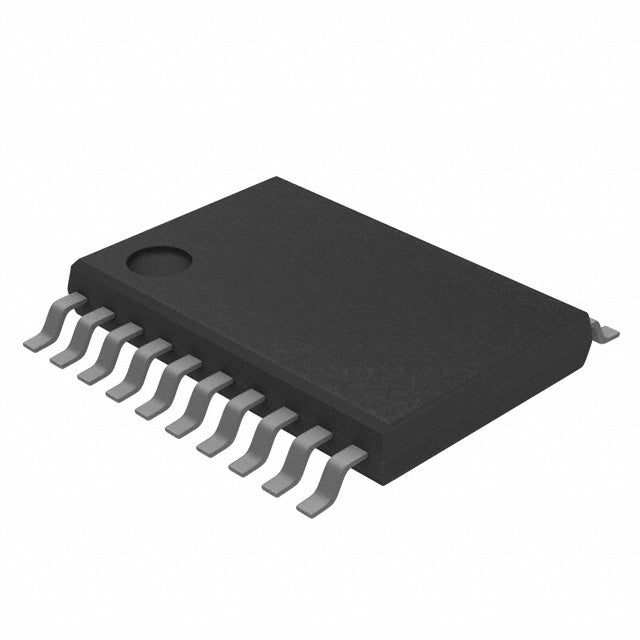

Microchip Technology ATTINY87-A15XZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® ATtiny |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 16 |
| Program Memory Size | 8KB (4K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 11x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The Microchip ATTINY87-A15XZ is a high-temperature AVR microcontroller in a compact 20-TSSOP package. It delivers 8KB Flash and 512B RAM, running at up to 16MHz. With a 2.7V to 5.5V supply range, it integrates a temperature sensor, PWM, and watchdog timer for robust control in automotive and industrial environments.
- Extended Temperature Range: Operates from -40°C to 125°C, suitable for under-hood automotive and harsh industrial settings.
- Integrated Analog Temperature Sensor: Eliminates external thermistors, reducing BOM cost and PCB area.
- Wide Voltage Range (2.7V-5.5V): Simplifies power design, supporting both 3.3V and 5V logic systems.
- Compact TSSOP-20 Package: Saves board space while providing enough I/O for control applications.
Automotive Sensor Interfaces
With a 125°C operating temperature and LIN capability, the ATTINY87-A15XZ is ideal for automotive sensor nodes requiring reliable communication and high-temperature endurance.
Industrial Process Control
The integrated PWM and WDT ensure precise timing and fault recovery in industrial controllers, while the 2.7V-5.5V range simplifies power supply design.
Battery-Powered Handheld Tools
Low-power sleep modes and a wide voltage range allow direct battery operation, extending runtime in portable measurement devices.
Smart Lighting Systems
PWM outputs enable smooth dimming and color control in LED drivers, with the temperature sensor providing over-temperature protection.
HVAC Zone Controllers
The 8KB Flash and 512B RAM are sufficient for PID control loops, while the brown-out detector ensures stable operation during power dips.
Portable Medical Monitors
The small TSSOP package and low pin count fit compact designs, and the internal oscillator reduces external component count for disposable devices.
- Q: What is the operating voltage range of the ATTINY87-A15XZ?
- A: The ATTINY87-A15XZ operates from 2.7V to 5.5V, making it suitable for battery and 5V systems.
- Q: What is the maximum clock speed?
- A: It runs at up to 16MHz, providing a balanced performance for control applications.
- Q: Does it include an analog temperature sensor?
- A: Yes, it features an internal temperature sensor, useful for thermal monitoring.
- Q: What package is available?
- A: It comes in a 20-pin TSSOP package (4.4mm width), ideal for compact PCBs.
- Q: What is the program memory size?
- A: It has 8KB of Flash memory (4K x 16 bits) for program storage.
