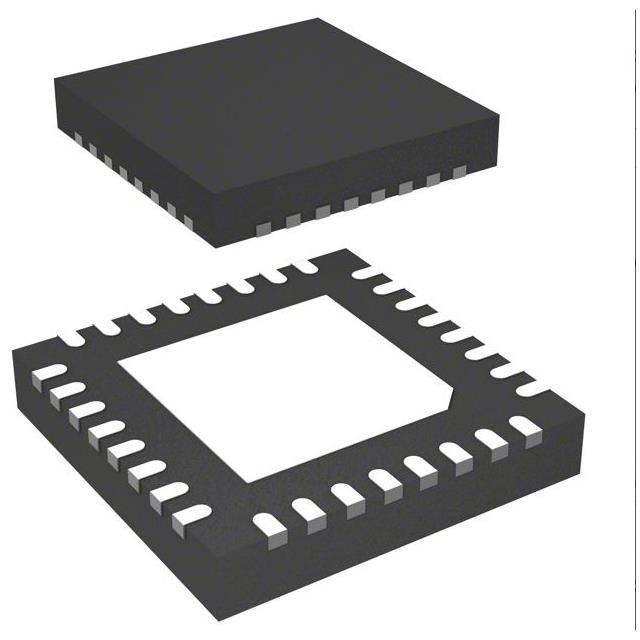

Microchip Technology ATXMEGA16E5-M4UR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.28 | $3.28 |
| 15+ | $3.17 | $47.55 |
| 25+ | $3.11 | $77.75 |
| 50+ | $2.93 | $146.50 |
| 100+ | $2.59 | $259.00 |
| N+ | $0.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® E5 |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-UQFN (4x4) |
| Package / Case | 32-UFQFN Exposed Pad |
| ROHS |  |
The ATXMEGA16E5-M4UR is a high-performance 8/16-bit AVR microcontroller with a 32MHz core and 16KB Flash. It operates from 1.6V to 3.6V, featuring DMA for efficient data handling. Housed in a compact 32-UFQFN package, it is ideal for low-power, high-speed embedded applications.
- DMA controller – offloads data transfer, freeing CPU for other tasks.
- Ultra-low voltage (1.6V) – extends battery life in portable devices.
- 32MHz speed – fast processing for real-time applications.
- Compact UFQFN package – saves PCB space in miniaturized designs.
Wearable Health Monitors
1.6V operation and DMA enable continuous sensor data collection with minimal power.
IoT Edge Nodes
32MHz speed and 16KB Flash handle protocol stacks and sensor fusion in smart home devices.
Portable Audio Devices
DMA and PWM support efficient audio sample playback and volume control.
Battery Management Systems
Low voltage and WDT ensure safe monitoring of lithium cells in portable electronics.
Motor Control Drones
High-speed PWM and compact package fit into small flight controllers.
Industrial Sensor Interfaces
DMA reduces CPU overhead for high-speed ADC sampling in vibration monitoring.
- Q: What is the core architecture?
- A: AVR 8-bit, with 32MHz max speed.
- Q: What is the voltage range?
- A: 1.6V to 3.6V, supporting low-power designs.
- Q: Does it have DMA?
- A: Yes, DMA controller for efficient data transfer without CPU load.
- Q: What is the package?
- A: 32-UFQFN exposed pad, compact for space-constrained PCBs.
- Q: How much RAM?
- A: 2KB, suitable for real-time data buffering.
ATXMEGA16E5-M4UR.pdf
- Q: What is the core architecture?
- A: AVR 8-bit, with 32MHz max speed.
- Q: What is the voltage range?
- A: 1.6V to 3.6V, supporting low-power designs.
- Q: Does it have DMA?
- A: Yes, DMA controller for efficient data transfer without CPU load.
- Q: What is the package?
- A: 32-UFQFN exposed pad, compact for space-constrained PCBs.
- Q: How much RAM?
- A: 2KB, suitable for real-time data buffering.
