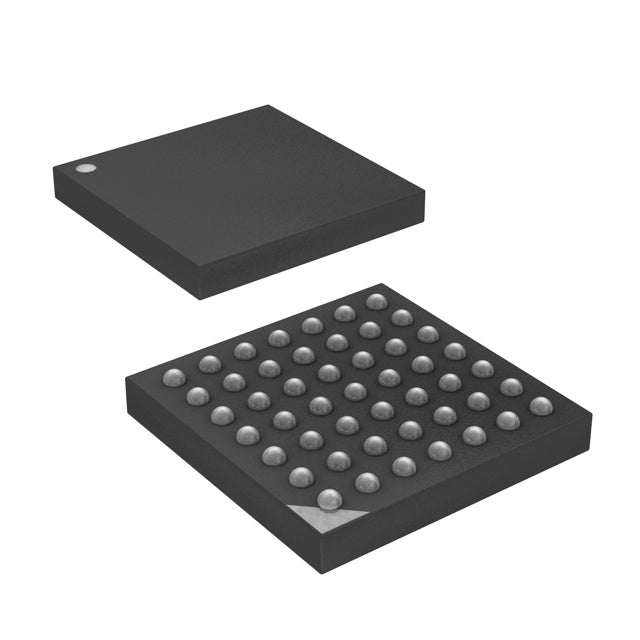

Microchip Technology ATXMEGA32C4-CU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.52 | $13.52 |
| 15+ | $3.11 | $46.65 |
| 25+ | $3.04 | $76.00 |
| 50+ | $2.87 | $143.50 |
| 100+ | $2.54 | $254.00 |
| N+ | $0.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® C4 |
| Packaging | Tray | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-VFBGA (5x5) |
| Package / Case | 49-VFBGA |
| ROHS |  |
The Microchip ATXMEGA32C4-CU is a high-performance 8/16-bit AVR microcontroller housed in a space-saving 49-VFBGA package. It delivers 32MHz operation with 32KB flash and 4KB SRAM, supporting a wide 1.6V to 3.6V supply range. Integrated features include brown-out detection, power-on reset, PWM channels, and a watchdog timer, ensuring reliable operation in demanding embedded applications.
- Ultra-Low Power Operation: 1.6V minimum supply voltage extends battery life in portable devices.
- High-Speed AVR Core: 32MHz clock enables fast processing for real-time control tasks.
- Compact BGA Package: 49-VFBGA reduces PCB footprint for space-constrained designs.
- Integrated Safety Features: Brown-out reset and watchdog timer enhance system reliability.
Battery-Powered IoT Sensors
The 1.6V minimum supply voltage and multiple sleep modes enable long battery life for wireless sensor nodes that periodically wake to take measurements and transmit data.
Motor Control for Drones
With 32MHz AVR core and built-in PWM channels, this MCU can generate precise control signals for brushless DC motor drivers in compact quadcopters.
Portable Medical Devices
The low-power operation and integrated analog comparators make it ideal for glucose meters or pulse oximeters that require accurate analog signal processing.
Industrial Automation Modules
Its robust brown-out detection and watchdog timer ensure reliable operation in noisy industrial environments, handling sensor inputs and actuator outputs.
Smart Home Controllers
The 49-VFBGA package saves PCB space, allowing integration into smart switches or thermostat controllers with limited board area.
Data Logging Systems
Combined with external EEPROM or SPI flash, the 4KB SRAM can buffer data before writing to storage, ideal for environmental monitoring.
- Q: What is the operating voltage range of the ATXMEGA32C4-CU?
- A: The ATXMEGA32C4-CU operates from 1.6V to 3.6V, making it suitable for battery-powered applications.
- Q: What is the maximum clock speed?
- A: The core can run at up to 32MHz, providing high computational throughput for its class.
- Q: How much program memory does it have?
- A: It features 32KB of in-system programmable flash memory (16K x 16 bits).
- Q: What package is this device available in?
- A: It comes in a compact 49-VFBGA (Very thin Fine-pitch Ball Grid Array) package.
- Q: Does it include analog peripherals?
- A: Yes, it includes a 12-bit ADC, 12-bit DAC, and analog comparators, along with PWM and WDT.
