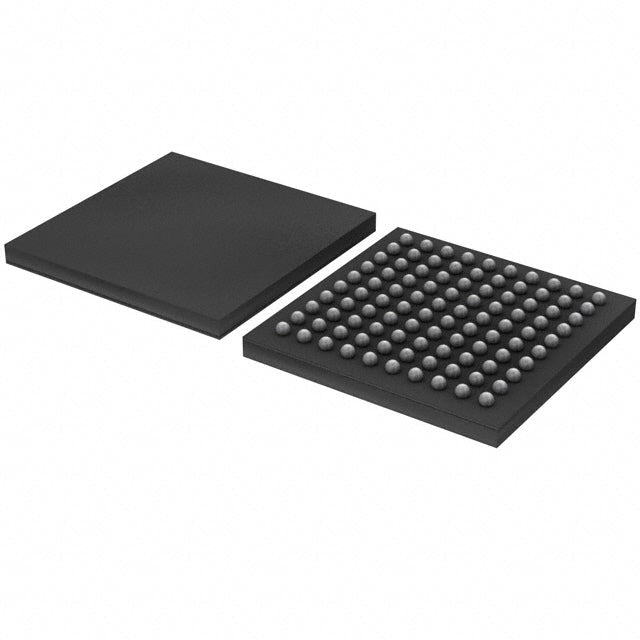

Microchip Technology ATXMEGA64A1-CUR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® A1 |
| Packaging | | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | EBI/EMI, I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 78 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 4x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-CBGA (9x9) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The Microchip ATXMEGA64A1-CUR is a low-power AVR microcontroller with a 32MHz core. It offers 64KB flash and 4KB SRAM, operating from 1.6V to 3.6V. The device includes DMA, PWM, and a watchdog timer, packaged in a 100-ball TFBGA. It is designed for compact, battery-powered applications requiring high integration.
- Ultra-low voltage operation: 1.6V minimum supply enables direct battery operation with minimal power loss.
- Compact package: 100-ball TFBGA reduces PCB area for space-constrained designs.
- Efficient DMA: Offloads data movement, improving throughput and reducing CPU wake time.
- Proven AVR architecture: Extensive toolchain and code examples accelerate development.
Wearable Fitness Trackers
The 1.6V minimum supply and 32MHz AVR core enable ultra-low-power operation for step counting and heart-rate monitoring.
Portable Instrumentation
With 64KB flash and DMA, it handles multi-channel data logging from sensors while maintaining low power consumption.
IoT End Nodes
The 100-ball TFBGA package saves space in compact wireless modules, while the PWM and WDT support protocol timing.
Consumer Electronics Remote Controls
Its low-voltage operation and fast wake-up time make it ideal for IR/RF remotes with long battery life.
Medical Patch Sensors
The small package and 1.6V operation allow flexible PCB designs for disposable health monitors.
Smart Agriculture Sensors
Operating at -40°C to 85°C, it reliably collects soil moisture data in outdoor environments.
- Q: What is the core of the ATXMEGA64A1?
- A: It uses the AVR 8/16-bit RISC core with a 32MHz maximum clock speed.
- Q: What is the voltage range?
- A: It operates from 1.6V to 3.6V, ideal for low-power battery applications.
- Q: How much flash and RAM does it have?
- A: It has 64KB of flash (32K x 16) and 4KB of SRAM.
- Q: What package is available?
- A: It comes in a 100-ball TFBGA package, offering a compact footprint.
- Q: Does it support DMA?
- A: Yes, it includes a DMA controller for efficient peripheral data transfers.
