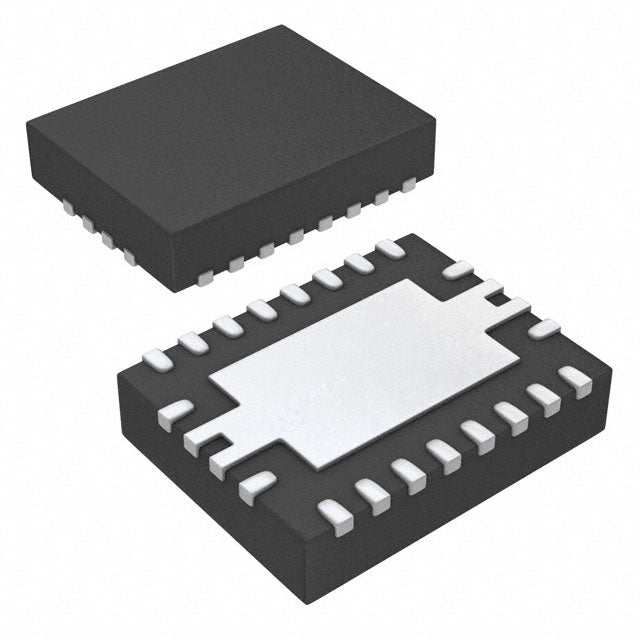

Texas Instruments BQ24104RHLR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.52 | $3.52 |
| 15+ | $3.41 | $51.15 |
| 25+ | $3.34 | $83.50 |
| 50+ | $3.15 | $157.50 |
| 100+ | $2.78 | $278.00 |
| N+ | $0.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | bqSWITCHER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 ~ 2 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 8.4V |
| Voltage - Supply (Max) | 16V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) |
| ROHS |  |
The BQ24104RHLR is a versatile 1-2 cell Lithium Ion/Polymer battery charger from Texas Instruments. It delivers up to 2A charge current for battery packs up to 8.4V. Designed for portable applications, it includes Over Temperature and Over Voltage protection to ensure safe charging. With an operating temperature range of -40°C to 85°C, it is suitable for both consumer and industrial environments. The 20-VFQFN Exposed Pad package provides excellent thermal performance for continuous operation.
- Multi-Cell Support: Charges 1 or 2 series Li-Ion/Polymer cells, offering design flexibility.
- Moderate Charge Current: 2A provides a balance between charging speed and thermal management.
- Thermal Efficiency: Exposed pad package enhances heat dissipation for reliable operation.
- Industrial Temperature Range: -40°C to 85°C supports demanding applications.
Two-Cell Portable Electronics
The BQ24104RHLR is designed for devices using 2-series Li-Ion/Polymer cells, providing up to 8.4V charging voltage for laptops, tablets, and portable speakers.
Handheld Industrial Scanners
With a 2A charge current and wide temperature range (-40°C to 85°C), it suits rugged handheld scanners used in warehouses and field operations.
Portable Medical Monitors
Reliable Over Temperature and Over Voltage protection make it suitable for battery-powered medical monitoring equipment.
Consumer Robotics
For robotic vacuum cleaners and toys using 2-cell packs, this charger offers efficient and safe charging.
Backup Battery Modules
Its ability to charge 1 or 2 cells makes it flexible for small backup battery modules in networking or security equipment.
- Q: What battery chemistry does the BQ24104RHLR support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports 1 to 2 cells.
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the battery voltage?
- A: The battery voltage is 8.4V.
- Q: What fault protections are included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What package is it available in?
- A: It comes in a 20-VFQFN Exposed Pad package.
BQ24104RHLR.pdf
