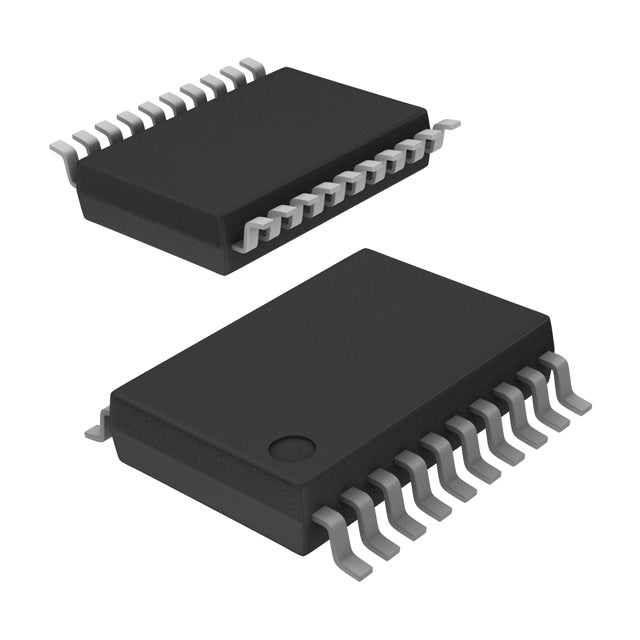

Texas Instruments CD74AC541SM96
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.82 | $0.82 |
| 15+ | $0.79 | $11.85 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.73 | $36.50 |
| 100+ | $0.65 | $65.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74AC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| ROHS |  |
The CD74AC541SM96 is an octal buffer from Texas Instruments, part of the 74AC high-speed CMOS family. It provides eight non-inverting buffers with 3-State outputs, delivering 24mA source and sink current. Operating from 1.5V to 5.5V, it is versatile for various logic levels. The 8-bit channel is ideal for bus buffering, memory interfaces, and industrial controls. Its 20-SSOP package is compact and suitable for dense PCBs.
- Wide Voltage Range (1.5V-5.5V): Supports multiple logic standards, reducing component count.
- Extended Temperature Range (-55°C to 125°C): Suitable for harsh environments.
- High Output Current (24mA): Drives heavy loads and long traces.
- 3-State Outputs: Enables bus sharing and multiplexing.
Wide-Voltage Bus Buffering
Use the CD74AC541SM96 to buffer buses in systems with varying supply voltages. Its 1.5V to 5.5V range supports multiple logic levels.
High-Temperature Industrial Controls
Operate in extreme environments with a -55°C to 125°C range. Ideal for automotive and aerospace applications.
Memory Address Buffering
Buffer address lines in SRAM or Flash memory. The 24mA output current drives capacitive loads effectively.
Level Shifting for Mixed-Voltage Systems
Translate between 1.8V, 2.5V, 3.3V, and 5V logic. The wide voltage range eliminates the need for separate level shifters.
Test and Measurement Equipment
Isolate measurement circuits from digital noise. The 3-State outputs allow for easy multiplexing.
FPGA and CPLD Interfacing
Buffer signals between FPGAs and peripheral devices. The high-speed 74AC family minimizes propagation delay.
- Q: What logic family is the CD74AC541SM96?
- A: It belongs to the 74AC family, offering high-speed CMOS performance.
- Q: What is the function of this IC?
- A: It is an octal buffer with non-inverting outputs, providing eight buffered lines.
- Q: How many channels does it have?
- A: It has 1 channel, which is an 8-bit buffer.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for bus-oriented applications.
- Q: What is the voltage range?
- A: It operates from 1.5V to 5.5V, covering a wide range of logic levels.
- Q: What package is available?
- A: It comes in a 20-SSOP package with a 5.30mm width.
