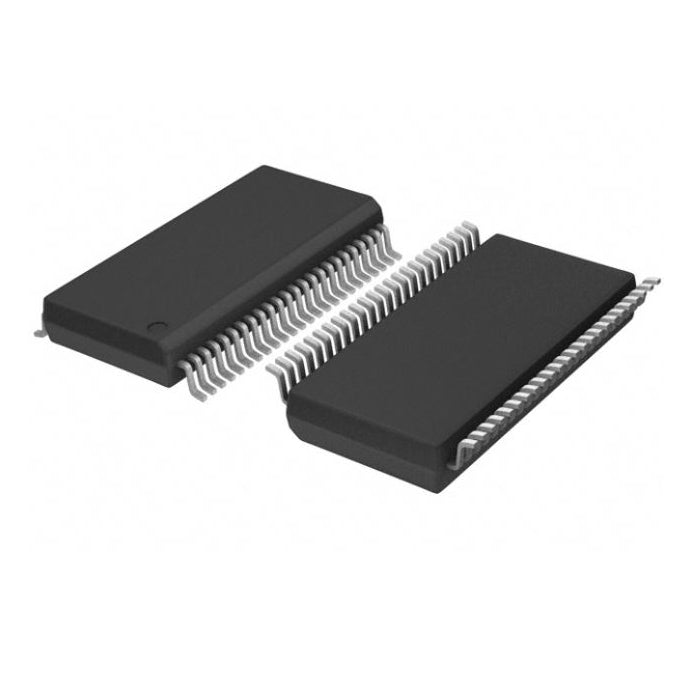

Texas Instruments CDC516DGG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $40.54 | $40.54 |
| 15+ | $9.33 | $139.95 |
| 25+ | $9.13 | $228.25 |
| 50+ | $8.62 | $431.00 |
| 100+ | $7.61 | $761.00 |
| N+ | $1.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | PLL Clock Driver |
| PLL | Yes with Bypass |
| Input | LVTTL |
| Output | LVTTL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:16 |
| Differential - Input:Output | No/No |
| Frequency - Max | 125MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| ROHS |  |
The Texas Instruments CDC516DGG is a PLL clock driver designed for high-performance clock distribution. With a single circuit supporting up to 125MHz, it accepts LVTTL input and provides multiple LVTTL outputs. The integrated PLL can be bypassed for direct clock buffering. Operating from 0°C to 70°C, it is ideal for telecom, networking, and industrial applications requiring low-skew, synchronized clock signals.
- Low Skew Distribution: PLL-based architecture ensures minimal phase offset between outputs, critical for synchronous systems.
- Flexible PLL Bypass: Allows direct clock buffering when PLL is not needed, increasing design versatility.
- Wide Temperature Range: 0°C to 70°C supports standard commercial environments.
- Compact TFSOP Package: 48-pin package saves board space while providing multiple outputs.
Telecom Clock Distribution
Use the CDC516DGG to distribute low-skew LVTTL clocks across telecom line cards, ensuring synchronized timing for multiple channels.
Networking Timing
In networking switches and routers, this PLL clock driver provides clean, buffered clock signals to MAC/PHY devices, reducing jitter and improving data integrity.
Processor Clock Generation
Generate and buffer core processor clocks at 125MHz, providing stable timing for CPU and memory interfaces in embedded systems.
Industrial Timing
For industrial controllers and PLCs, the CDC516DGG offers reliable clock distribution over a 0°C to 70°C range, suitable for factory automation.
Test and Measurement
In ATE and lab instruments, use this driver to fan out a single LVTTL reference to multiple measurement modules, maintaining phase alignment.
Broadcast Video Synchronization
Synchronize video processing chains by distributing a common 125MHz clock to multiple encoders/decoders, ensuring frame-accurate timing.
- Q: What type of device is the CDC516DGG?
- A: It is a PLL Clock Driver from Texas Instruments.
- Q: Does the CDC516DGG support PLL?
- A: Yes, it has a PLL with bypass capability.
- Q: What are the input and output types?
- A: Both input and output are LVTTL (single-ended).
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 125MHz.
- Q: What is the operating temperature and package?
- A: It operates from 0°C to 70°C and comes in a 48-TFSOP package.
