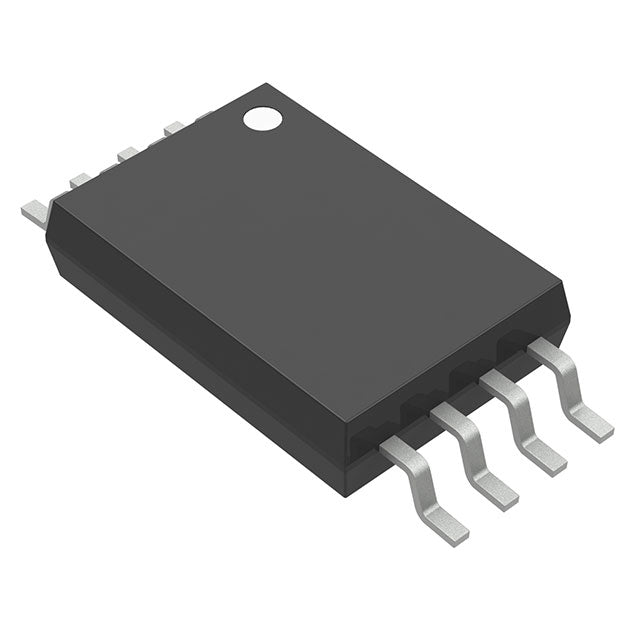

Texas Instruments CDCS502PW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.51 | $2.51 |
| 15+ | $2.43 | $36.45 |
| 25+ | $2.38 | $59.50 |
| 50+ | $2.24 | $112.00 |
| 100+ | $1.98 | $198.00 |
| N+ | $0.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | Spread Spectrum Clock Driver |
| PLL | No |
| Input | Crystal |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | 108MHz |
| Divider/Multiplier | No/Yes |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
The CDCS502PW from Texas Instruments is a single-circuit Spread Spectrum Clock Driver that accepts a crystal input and provides LVCMOS output at frequencies up to 108MHz. This device is designed to reduce electromagnetic interference (EMI) in electronic systems. Packaged in an 8-TSSOP, it operates from -40°C to 85°C, making it suitable for a wide range of consumer and industrial applications.
- Spread Spectrum Modulation: Reduces EMI emissions, simplifying system compliance with electromagnetic compatibility standards.
- Simple Crystal Interface: Direct crystal input eliminates the need for external oscillators, reducing BOM cost.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and automotive applications.
- Compact 8-TSSOP Package: Space-saving design for dense PCB layouts.
EMI Reduction in Consumer Electronics
Reduce electromagnetic interference in set-top boxes, TVs, and gaming consoles. The spread spectrum modulation spreads the clock energy over a wider bandwidth, lowering peak EMI and easing compliance with regulatory standards.
LCD Display Timing
Generate spread spectrum clocks for LCD panels and display controllers. This reduces EMI from high-speed display interfaces, improving signal integrity and reducing system noise in monitors and laptops.
Printer and Imaging Systems
Provide clock signals for printer controllers and imaging ASICs. The spread spectrum feature helps meet EMI requirements in office equipment while maintaining reliable operation over the -40°C to 85°C range.
Networking Peripherals
Clock network interface controllers and PHY chips in routers and switches. The LVCMOS output and crystal input simplify design while spread spectrum reduces radiated emissions from high-speed data lines.
Industrial Control Systems
Generate low-EMI clocks for PLCs and industrial sensors. The wide temperature range and spread spectrum capability make it suitable for factory floor environments where electromagnetic compatibility is critical.
- Q: What type of device is the CDCS502PW?
- A: The CDCS502PW is a Spread Spectrum Clock Driver from Texas Instruments.
- Q: Does it include a PLL?
- A: No, this device does not include a PLL.
- Q: What are the input and output types?
- A: It accepts a Crystal input and provides LVCMOS output.
- Q: How many circuits and what is the max frequency?
- A: It has 1 circuit and supports frequencies up to 108MHz.
- Q: What is the temperature range?
- A: It operates from -40°C to 85°C.
- Q: What is the package type?
- A: The CDCS502PW comes in an 8-TSSOP (0.173", 4.40mm Width) package.
