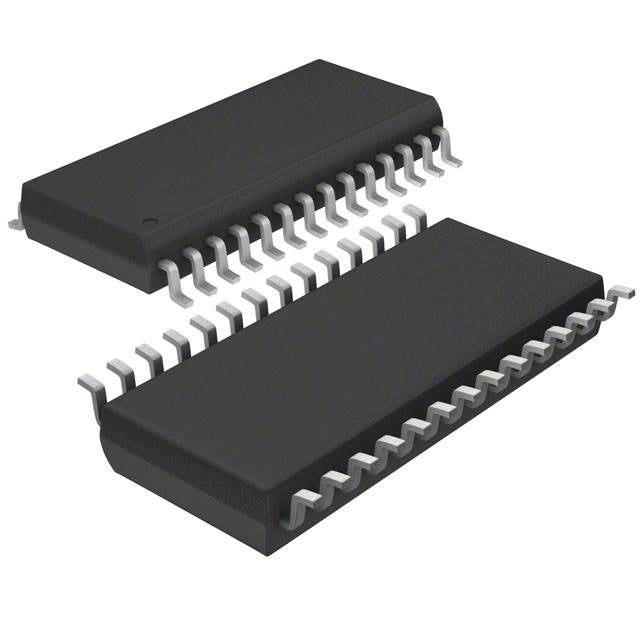

Infineon Technologies CY8C21534-24PVXIT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.98 | $5.98 |
| 15+ | $5.79 | $86.85 |
| 25+ | $5.66 | $141.50 |
| 50+ | $5.35 | $267.50 |
| 100+ | $4.72 | $472.00 |
| N+ | $0.94 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™1 CY8C21xxx |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Data Converters | A/D 28x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The Infineon CY8C21534-24PVXIT is a PSoC MCU with an M8C core running at 24MHz. It offers 8KB flash and 512 bytes RAM, with programmable analog/digital blocks. Operating from 2.4V to 5.25V, it is packaged in a 28-SSOP, ideal for touch-sensing and mixed-signal applications.
- Programmable analog blocks: Reduces external op-amps and comparators.
- CapSense support: Adds touch interfaces with minimal hardware.
- Wide voltage range: Works with legacy 5V and modern 3.3V logic.
- Compact SSOP-28: Saves space in consumer electronics.
Capacitive Touch Sensing
Integrated CapSense technology enables touch buttons and sliders without external ICs.
Analog Signal Conditioning
Programmable analog blocks amplify and filter sensor signals before ADC conversion.
LED Dimming Control
PWM modules drive LED drivers with smooth brightness control in lighting systems.
Battery Chargers
Wide voltage range and WDT ensure safe charging profiles for Li-ion batteries.
Industrial Timers
24MHz clock and 8KB flash support precise timing sequences for automation.
Consumer Appliances
Low pin count and mixed-signal integration reduce component count in coffee makers.
- Q: What is the core architecture?
- A: It uses the M8C core, optimized for mixed-signal processing.
- Q: What is the supply voltage range?
- A: It operates from 2.4V to 5.25V, compatible with 3.3V and 5V systems.
- Q: Does it have programmable analog blocks?
- A: Yes, it includes configurable analog and digital PSoC blocks.
- Q: What is the package type?
- A: It comes in a 28-SSOP package, suitable for compact PCBs.
CY8C21534-24PVXIT.pdf
- Q: What is the core architecture?
- A: It uses the M8C core, optimized for mixed-signal processing.
- Q: What is the supply voltage range?
- A: It operates from 2.4V to 5.25V, compatible with 3.3V and 5V systems.
- Q: Does it have programmable analog blocks?
- A: Yes, it includes configurable analog and digital PSoC blocks.
- Q: What is the package type?
- A: It comes in a 28-SSOP package, suitable for compact PCBs.
