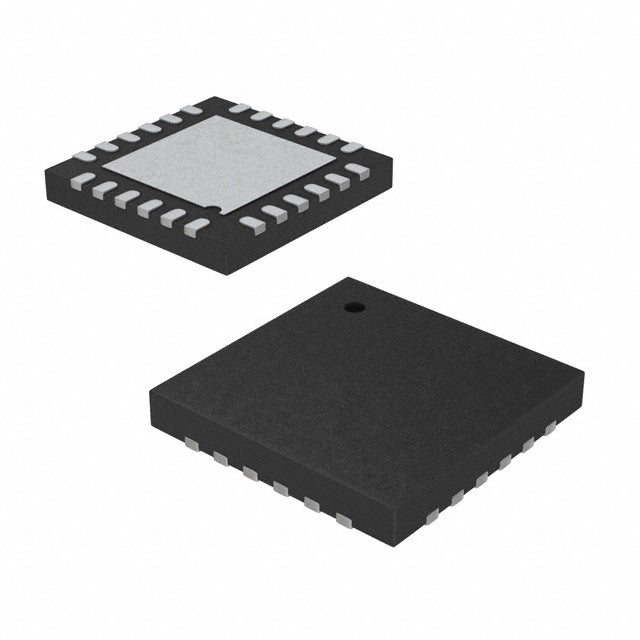

Infineon Technologies CY8C4025LQA-S411T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.66 | $11.66 |
| 15+ | $2.68 | $40.20 |
| 25+ | $2.62 | $65.50 |
| 50+ | $2.47 | $123.50 |
| 100+ | $2.18 | $218.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 CY8C4000S |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, POR, PWM, WDT |
| Number of I/O | 19 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 16x10b; D/A 1x7/1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 24-QFN (4x4) |
| Package / Case | 24-UFQFN Exposed Pad |
| ROHS |  |
The CY8C4025LQA-S411T from Infineon is a low-power 32-bit MCU based on the ARM Cortex-M0+ core at 24MHz. It features 32KB of flash and 4KB of RAM, with a supply voltage range of 1.71V to 5.5V. This device integrates CapSense capacitive sensing, LCD driver, PWM, and brown-out detection in a compact 24-UFQFN package. Its combination of touch sensing and low power makes it ideal for human-machine interface applications.
- Integrated CapSense: Provides reliable touch sensing without external components, reducing cost and board space.
- Ultra-compact package: 24-UFQFN with exposed pad fits space-constrained wearable designs.
- Wide voltage range: 1.71V to 5.5V supports both battery and USB-powered applications.
- ARM Cortex-M0+ ecosystem: Benefit from extensive software libraries and development tools.
Touch-Enabled Consumer Electronics
Integrated CapSense eliminates external touch ICs, enabling sleek interfaces in smart speakers and remote controls.
Wearable Fitness Devices
The 24MHz Cortex-M0+ and low power modes support continuous heart-rate monitoring in wristbands.
Smart Home Keypads
CapSense buttons with proximity sensing work through plastic enclosures for modern door locks.
Industrial HMI Panels
Robust operation from 1.71V to 5.5V and LCD support make it suitable for factory floor displays.
Medical Monitoring Devices
Small 24-UFQFN package and low power enable compact pulse oximeters and thermometers.
IoT Sensor Nodes
Integrated PWM and WDT provide reliable operation in battery-powered environmental sensors.
- Q: What core does the CY8C4025LQA-S411T use?
- A: It uses the ARM Cortex-M0+ processor running at up to 24MHz.
- Q: Does it support capacitive touch sensing?
- A: Yes, it includes integrated CapSense technology for touch buttons and sliders.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 5.5V, covering both low-power and standard applications.
- Q: What package is this available in?
- A: It comes in a compact 24-UFQFN package with exposed pad for thermal management.
