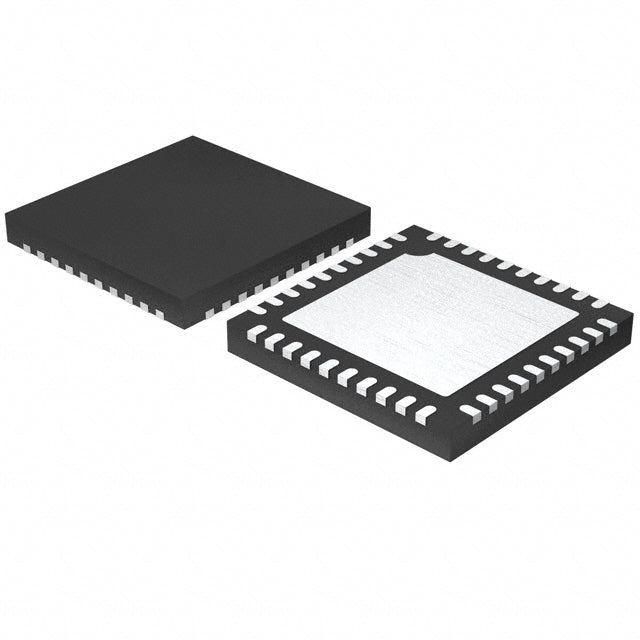

Infineon Technologies CY8C4124LQS-S413T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.88 | $13.88 |
| 15+ | $3.19 | $47.85 |
| 25+ | $3.12 | $78.00 |
| 50+ | $2.95 | $147.50 |
| 100+ | $2.60 | $260.00 |
| N+ | $0.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 CY8C4100S Plus |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 16x10b, 12x12b SAR; D/A 2x7b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-QFN (6x6) |
| Package / Case | 40-UFQFN Exposed Pad |
| ROHS |  |
The CY8C4124LQS-S413T is an Infineon 32-bit MCU featuring an ARM Cortex-M0+ core. With 16KB flash and 4KB SRAM, it is optimized for cost-sensitive applications. It integrates CapSense touch sensing and an LCD controller, making it ideal for user interface applications. Its wide voltage range and robust temperature rating ensure reliable operation in diverse conditions.
- Cost-Effective: 16KB flash reduces cost for simple UI applications.
- CapSense Integration: Eliminates external touch controllers.
- Wide Voltage Support: 1.71V to 5.5V for flexible power designs.
- Compact Package: 40-UFQFN saves PCB space.
Compact Touch Buttons
CapSense technology enables reliable touch buttons in small form-factor consumer electronics.
Industrial Control Panels
With 105°C rating and 5.5V I/O, it handles noisy industrial environments.
Portable Medical Devices
Low power consumption and small 40-UFQFN package suit handheld diagnostic tools.
Smart Lighting Controls
PWM outputs and touch inputs create intuitive dimmer switches.
White Goods Interfaces
LCD driver and CapSense combine for washing machine or microwave control panels.
Sensor Hubs
Multiple serial interfaces connect to temperature, humidity, and motion sensors.
- Q: What is the core processor of CY8C4124LQS-S413T?
- A: It uses an ARM Cortex-M0+ core at 24 MHz.
- Q: How much flash memory does it have?
- A: It has 16KB of flash memory.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C.
- Q: Does it support CapSense?
- A: Yes, it includes CapSense for touch sensing.
- Q: What is the supply voltage?
- A: It supports 1.71V to 5.5V.
