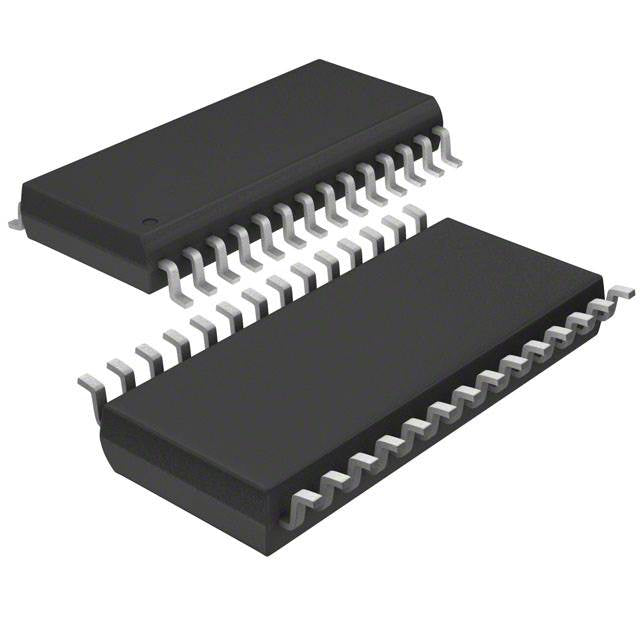

Infineon Technologies CY8C4124PVA-442Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.53 | $13.53 |
| 15+ | $3.11 | $46.65 |
| 25+ | $3.04 | $76.00 |
| 50+ | $2.87 | $143.50 |
| 100+ | $2.54 | $254.00 |
| N+ | $0.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 CY8C4100 |
| Packaging | Tube | NULL |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 8x12b SAR; D/A 2xIDAC |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The Infineon CY8C4124PVA-442Z is a 32-bit ARM Cortex-M0 microcontroller running at 24MHz. It provides 16KB flash and 4KB RAM in a compact 28-SSOP package. With a supply range of 1.71V to 5.5V, it integrates CapSense, LCD driver, LVD, POR, PWM, and WDT, making it ideal for touch-enabled and low-power applications.
- Integrated CapSense: Eliminates external touch controller ICs.
- ARM Cortex-M0: Industry-standard 32-bit core with broad tool support.
- 1.71V operation: Enables direct battery operation down to 1.8V cells.
- 28-SSOP: Small footprint for portable and space-constrained designs.
Touch-Sensitive User Interfaces
Built-in CapSense replaces mechanical buttons in consumer electronics.
Portable Medical Devices
Low 1.71V operation extends battery life in glucose meters and thermometers.
Smart Home Sensors
LCD driver support enables direct display connection, reducing BOM cost.
Industrial HMI Panels
ARM Cortex-M0 at 24MHz handles capacitive touch and communication protocols.
Wearable Fitness Trackers
28-SSOP package and low power modes suit compact, battery-powered designs.
LED Lighting Controllers
PWM outputs drive dimming circuits, with WDT for fail-safe operation.
- Q: What core does this MCU use?
- A: ARM Cortex-M0 at 24MHz.
- Q: Does it support CapSense?
- A: Yes, integrated CapSense for touch sensing.
- Q: What is the package type?
- A: 28-SSOP (5.30mm width), compact for space-limited designs.
- Q: What is the supply voltage range?
- A: 1.71V to 5.5V, supporting low-power and standard logic.
