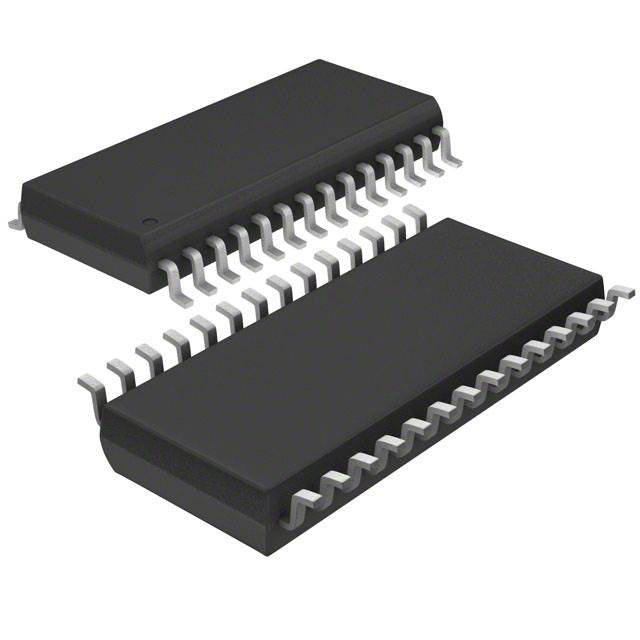

Infineon Technologies CY8C4124PVS-S412T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.72 | $13.72 |
| 15+ | $3.16 | $47.40 |
| 25+ | $3.09 | $77.25 |
| 50+ | $2.92 | $146.00 |
| 100+ | $2.57 | $257.00 |
| N+ | $0.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 CY8C4100S Plus |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 16x10b, 12x12b SAR; D/A 2x7b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The Infineon CY8C4124PVS-S412T is a PSoC 4 series MCU built around a 24MHz ARM Cortex-M0+ core. It integrates CapSense touch sensing, programmable analog blocks, and 16KB flash memory in a compact 28-pin SSOP package. Operating from 1.71V to 5.5V, it suits battery and industrial applications. On-chip LVD, POR, and WDT enhance system robustness.
- Integrated CapSense: Eliminates external touch controllers, reducing BOM cost and PCB area.
- Wide Voltage Range (1.71V-5.5V): Simplifies power design, supporting direct battery connection.
- Extended Temperature Range (-40°C to 105°C): Reliable in harsh industrial and automotive environments.
- Compact 28-SSOP Package: Saves board space while providing enough I/O for control applications.
Industrial Sensor Interfaces
With a 1.71V-5.5V supply and CapSense, this MCU can read analog sensors and capacitive touch panels in industrial HMI systems, operating reliably across wide temperature ranges.
Portable Medical Devices
The low-power ARM Cortex-M0+ core at 24MHz, combined with 16KB flash and 4KB SRAM, enables compact firmware for glucose meters or pulse oximeters, running on battery voltages down to 1.71V.
Smart Home Control Panels
CapSense technology replaces mechanical buttons, while PWM outputs drive LED indicators. The 28-SSOP package fits space-constrained wall panels.
Automotive Interior Lighting
Operating from -40°C to 105°C, this MCU can control RGB LED lighting via PWM, with LVD and POR ensuring safe power-up/down sequences in vehicle cabins.
Battery-Powered IoT Sensors
The wide voltage range allows direct connection to 2xAA or Li-ion batteries without external regulators, while WDT and brown-out detection enhance field reliability.
White Goods User Interfaces
CapSense-based touch dials and LCD segment driving are supported, making it ideal for washing machines or microwaves where moisture resistance is critical.
- Q: What is the operating voltage range of the CY8C4124PVS-S412T?
- A: It operates from 1.71V to 5.5V, supporting both low-power and standard applications.
- Q: Does this MCU support capacitive touch sensing?
- A: Yes, it includes CapSense technology for reliable touch and proximity sensing.
- Q: What is the maximum CPU speed?
- A: The ARM Cortex-M0+ core runs at up to 24MHz.
- Q: What package is available?
- A: It comes in a 28-pin SSOP package (5.30mm width).
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C, suitable for industrial environments.
