Altera EP2C5F256C6N

Altera Cyclone II EP2C5F256C6N FPGA - High-Performance Programmable Logic Device

The EP2C5F256C6N is a member of Intel's proven Cyclone II FPGA family, delivering reliable programmable logic performance for industrial, telecommunications, automotive, and embedded system applications. This device combines 4,608 logic elements with 119,808 RAM bits and 158 I/O pins in a compact 256-FBGA surface-mount package, making it ideal for space-constrained designs requiring moderate logic density and flexible I/O.

Key Features & Benefits

• 4,608 Logic Elements across 288 LABs for flexible digital design implementation
• 158 I/O pins supporting multiple voltage standards and high-speed interfaces
• 119,808 RAM bits of embedded memory for buffering, FIFOs, and lookup tables
• Industrial temperature range (0°C to 85°C TJ) for reliable operation in harsh environments
• Low power consumption with 1.15V to 1.25V core supply voltage

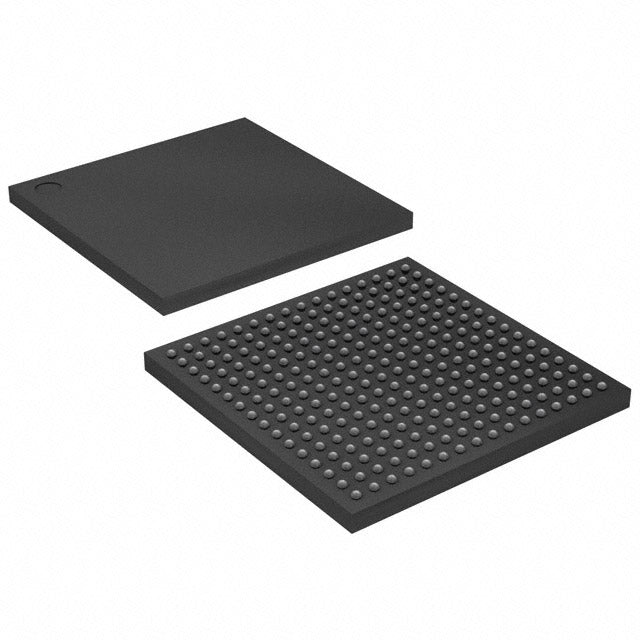

• 256-FBGA (17x17 mm) compact footprint for high-density PCB layouts
• RoHS compliant for environmental and regulatory compliance

Typical Applications

This FPGA is well-suited for motor control, industrial automation, protocol bridging, sensor interfacing, medical instrumentation, and communications infrastructure where long product lifecycle support and proven reliability are essential.

For detailed design resources, reference the official Cyclone II Device Handbook and application notes from Intel.

• EP2C5F256C6N.pdf
