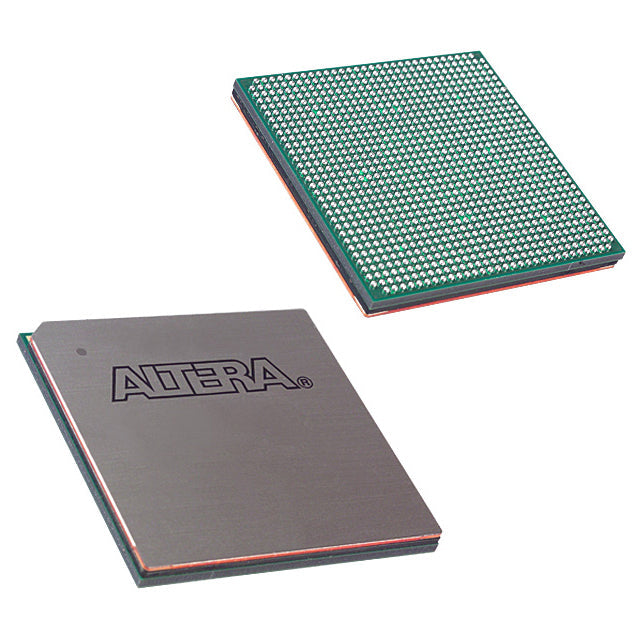

Altera EP2S90F1020C3

Product Overview

The EP2S90F1020C3 is a high-performance Field Programmable Gate Array (FPGA) from Altera's renowned Stratix II family. Engineered for demanding embedded, industrial, automotive, and IoT applications, this FPGA delivers exceptional logic density with 90,960 logic elements and 758 I/O pins in a compact 1020-FBGA (33x33mm) package.

Key Features & Benefits

• Massive Logic Capacity: 90,960 logic elements across 4,548 LABs/CLBs enable complex digital designs and signal processing
• Extensive Memory: 4,520,488 total RAM bits support data-intensive applications and buffering requirements
• High I/O Count: 758 I/O pins provide flexible connectivity for multi-interface systems
• Reliable Operation: Commercial temperature range (0°C to 85°C TJ) ensures stable performance in industrial environments
• Surface Mount Design: 1020-BBGA package optimized for automated assembly and space-constrained PCB layouts
• Proven Architecture: Stratix II family heritage delivers field-tested reliability and comprehensive development tool support

This FPGA operates on a 1.15V to 1.25V supply voltage, making it compatible with modern low-power digital systems. The device ships in tray packaging, ideal for volume production and automated pick-and-place workflows. With its combination of logic density, I/O flexibility, and embedded memory, the EP2S90F1020C3 is well-suited for applications including high-speed communications, video processing, motor control, and custom computing accelerators.

Quality & Authenticity Guarantee

HQICKEY sources all semiconductor components directly from authorized distributors and manufacturers, ensuring 100% authentic parts with full traceability and lifecycle support. Every EP2S90F1020C3 FPGA is backed by our quality commitment and technical documentation access.
