Altera EPXA1F484C1

Altera EPXA1F484C1 Excalibur™ FPSLIC - ARM9 Embedded Processor with FPGA

The EPXA1F484C1 is a high-performance Field Programmable System Level Integrated Circuit (FPSLIC) from Altera's Excalibur™ family, combining a powerful 32-bit ARM9 processor core with flexible FPGA logic. This innovative device delivers the processing power of an embedded microcontroller with the configurability of programmable logic, making it ideal for complex embedded system applications requiring both processing and custom hardware acceleration.

Key Features & Benefits

• Powerful Processing: 32-bit ARM9 core running at 266 MHz for demanding embedded applications
• Flexible FPGA Logic: 100K gates (4,160 core cells) for custom hardware implementation
• Integrated Memory: 32KB program SRAM and 16KB data SRAM for efficient code execution
• Versatile Interfaces: EBI/EMI and UART/USART support for diverse connectivity options
• Industrial Grade: Operating temperature range of 0°C to 85°C for reliable performance in harsh environments

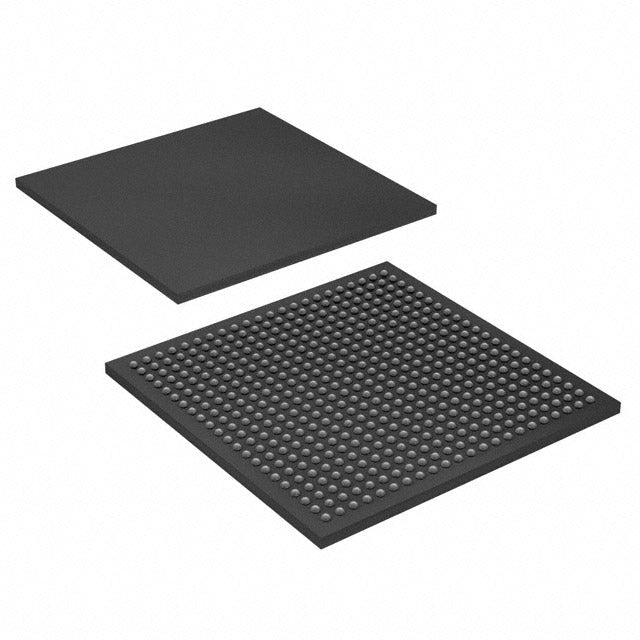

• Compact Package: 484-FBGA (23x23mm) for space-constrained designs

Ideal Applications

Perfect for industrial control systems, embedded networking equipment, motor control applications, digital signal processing, telecommunications infrastructure, automotive electronics, and any application requiring both programmable logic and embedded processing capabilities in a single chip.

Why Choose the EPXA1F484C1?

This Excalibur FPSLIC combines the best of both worlds: the deterministic performance of a dedicated ARM9 processor with the flexibility of reconfigurable FPGA fabric. Design custom peripherals, implement hardware acceleration for time-critical tasks, and maintain full software control—all on one chip. Reduce board complexity, lower power consumption, and accelerate time-to-market for your embedded system designs.

• EPXA1F484C1.pdf
