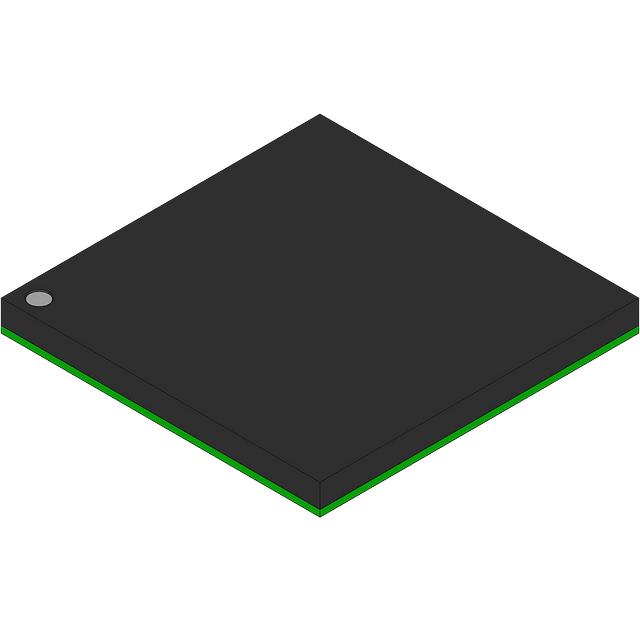

Renesas Electronics Corporation HD6417705BP100V
Normaler Preis
$173.24
Normaler Preis
$43.31
Verkaufspreis
$173.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $173.24 | $173.24 |
| 15+ | $39.85 | $597.75 |
| 25+ | $38.98 | $974.50 |
| 50+ | $36.81 | $1,840.50 |
| 100+ | $32.48 | $3,248.00 |
| N+ | $6.50 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | SuperH® SH7700 |
| Packaging | Bulk | Bulk |
| Core Processor | SH-3 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | EBI/EMI, FIFO, IrDA, SCI, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 105 |
| Program Memory Size | - |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 1.6V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-TFBGA (12x12) |
| Package / Case | 208-TFBGA |
| ROHS |  |
The HD6417705BP100V from Renesas is a 32-bit SH-3 microcontroller operating at 100MHz. It integrates DMA, POR, PWM, and WDT in a compact 208-TFBGA package, ideal for low-power embedded control.
- Ultra-low voltage (1.4-1.6V) – reduces system power for portable designs.
- High-speed SH-3 core (100MHz) – handles complex control loops.
- Integrated DMA – offloads data transfer, improving real-time performance.
- Compact 208-TFBGA – saves PCB space for dense layouts.
Portable Industrial Controllers
Low 1.4-1.6V operation reduces power for battery-driven HMI and control panels.
Embedded DSP/Audio Processing
100MHz SH-3 core with DMA handles real-time audio algorithms efficiently.
Motor Control Systems
PWM and WDT support safe, closed-loop motor drives in robotics.
Power-Managed IoT Gateways
POR and low-voltage design enable reliable wake/sleep cycles.
Measurement Instruments
32K x 8 RAM buffers sensor data; DMA offloads CPU for fast logging.
- Q: What is the operating voltage range?
- A: 1.4V to 1.6V.
- Q: What core does it use?
- A: SH-3.
- Q: What is the maximum clock speed?
- A: 100MHz.
- Q: What package is available?
- A: 208-TFBGA.
Base Product Number ：
HD6417705BP100
HD6417705BP100V.pdf
