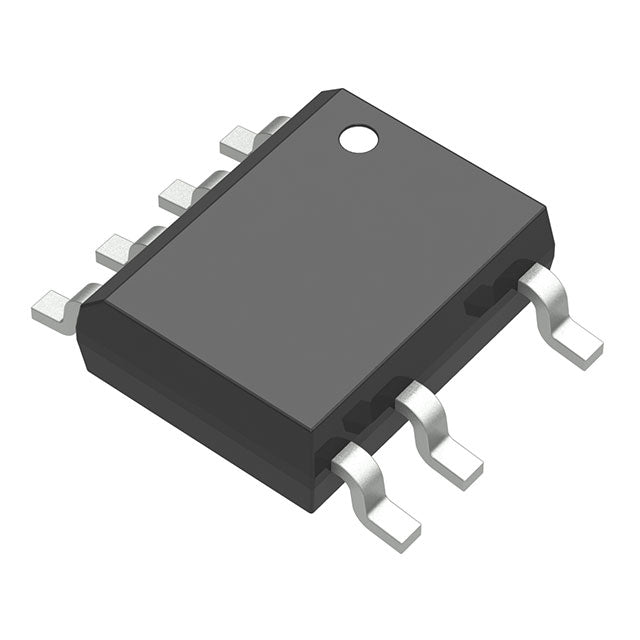

Monolithic Power Systems Inc. HF920AGSE-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.40 | $1.40 |
| 15+ | $1.35 | $20.25 |
| 25+ | $1.32 | $33.00 |
| 50+ | $1.25 | $62.50 |
| 100+ | $1.10 | $110.00 |
| N+ | $0.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 24V |
| Duty Cycle | 83% |
| Frequency - Switching | 150kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7A |
| ROHS |  |
The HF920AGSE-P from Monolithic Power Systems is a fixed-frequency off-line flyback switcher with an integrated switch and 900V breakdown rating. It operates from a 10V to 24V Vcc supply at 150kHz with up to 83% duty cycle, delivering galvanically isolated output. Protections include current limiting, over temperature, over voltage, short circuit, and UVLO, with soft start and frequency control. Housed in a compact 8-SOIC (7-lead) package rated -40°C to 125°C.
- 900V breakdown voltage provides margin for high off-line bus voltages.
- Integrated switch reduces external parts and simplifies flyback design.
- Compact 8-SOIC (7-lead) package saves board space.
- Protection suite including OVP, OTP, SCP, and UVLO improves reliability.
- -40°C to 125°C junction range suits demanding thermal environments.
Compact Off-Line Supplies
The 8-SOIC (7-lead) package and integrated switch make the HF920AGSE-P suited to space-constrained flyback off-line supplies. The 150kHz fixed frequency and 83% max duty cycle support compact magnetics.
Isolated Auxiliary Rails
Galvanically isolated flyback topology provides safe primary-to-secondary separation for auxiliary bias rails.
High-Voltage Adapters
A 900V Vds rating handles elevated input voltages, while soft start and frequency control simplify loop and EMI-conscious design.
Harsh-Environment Designs
The -40°C to 125°C junction range supports reliable operation in demanding thermal environments, backed by over temperature and short-circuit protection.
- Q: What topology does the HF920AGSE-P use?
- A: It is a flyback off-line switcher with galvanically isolated output.
- Q: What is the switch breakdown voltage?
- A: 900V Vds rating for high-voltage off-line use.
- Q: What is the Vcc supply range?
- A: 10V to 24V operating supply.
- Q: What switching frequency and max duty cycle?
- A: 150kHz fixed frequency with 83% maximum duty cycle.
- Q: What package is it offered in?
- A: 8-SOIC (7-lead) package rated -40°C to 125°C.
