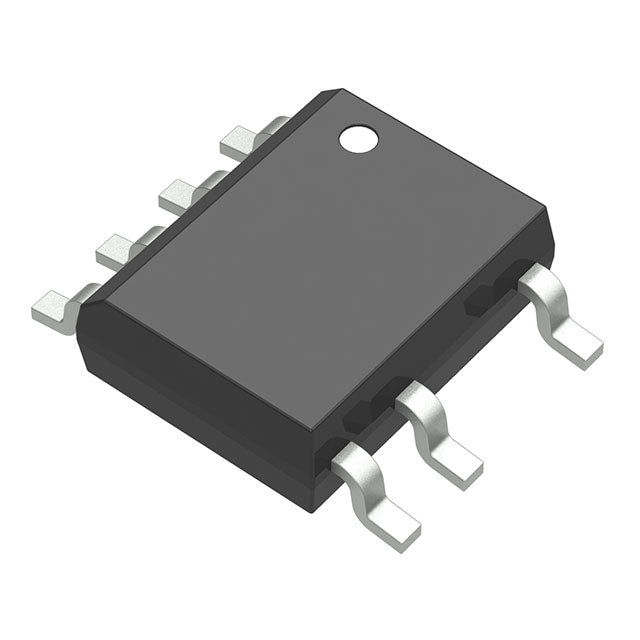

Monolithic Power Systems Inc. HF920BGSE-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.40 | $1.40 |
| 15+ | $1.35 | $20.25 |
| 25+ | $1.32 | $33.00 |
| 50+ | $1.25 | $62.50 |
| 100+ | $1.10 | $110.00 |
| N+ | $0.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Topology | Flyback |
| Voltage - Start Up | 4 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 24V |
| Duty Cycle | 83% |
| Frequency - Switching | Up to 150kHz |
| Power (Watts) | 9.5 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7A |
| ROHS |  |
The HF920BGSE-P from Monolithic Power Systems is a fixed-frequency flyback controller with an integrated switch for isolated offline AC-DC conversion. It features a 900V breakdown rating, a 10V to 24V Vcc supply, a 4V start-up voltage, and up to 83% duty cycle. Delivering up to 9.5 W with switching frequencies up to 150kHz, it includes current limiting, over-load, over-temperature, and short-circuit protection in an 8-SOIC package.
- 900V breakdown rating supports high-voltage offline flyback designs with margin.
- Integrated switch simplifies isolated flyback power stages and reduces external parts.
- Up to 9.5 W output with switching frequencies up to 150kHz enables compact magnetics.
- Comprehensive protection set (current limiting, over-load, over-temperature, short circuit) improves reliability.
- -40°C to 125°C junction range suits demanding industrial environments.
Isolated Auxiliary Supplies
The 900V breakdown rating and integrated switch make the HF920BGSE-P well suited to isolated auxiliary bias supplies fed from high-voltage DC rails, where a compact flyback stage is required.
Industrial Metering and Control
With a -40°C to 125°C junction temperature range and up to 9.5 W output, this flyback controller fits isolated power stages in industrial instrumentation and control boards.
Smart Meter and Appliance Power
Fixed-frequency flyback operation with frequency control and up to 83% duty cycle supports compact isolated power for metering and appliance electronics.
Offline Standby Rails
Current limiting, over-load, over-temperature, and short-circuit protection help build robust isolated offline standby supplies using the HF920BGSE-P.
- Q: What topology does the HF920BGSE-P use?
- A: It is a fixed-frequency flyback controller with an integrated switch for isolated offline AC-DC conversion.
- Q: What is the breakdown voltage?
- A: The integrated switch has a 900V Vds rating, suitable for high-voltage offline rails.
- Q: What is the Vcc supply range?
- A: The IC operates from a 10V to 24V Vcc supply, with a 4V start-up voltage.
- Q: How much power can it deliver?
- A: It supports up to 9.5 W output power with switching frequency up to 150kHz.
- Q: What protections are included?
- A: Current limiting, over-load, over-temperature, and short-circuit protection.
