Monolithic Power Systems Inc. HF920BGSE-Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.45 | $3.45 |
| 15+ | $3.34 | $50.10 |
| 25+ | $3.27 | $81.75 |
| 50+ | $3.09 | $154.50 |
| 100+ | $2.72 | $272.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Topology | Flyback |
| Voltage - Start Up | 4 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 24V |
| Duty Cycle | 83% |
| Frequency - Switching | Up to 150kHz |
| Power (Watts) | 9.5 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

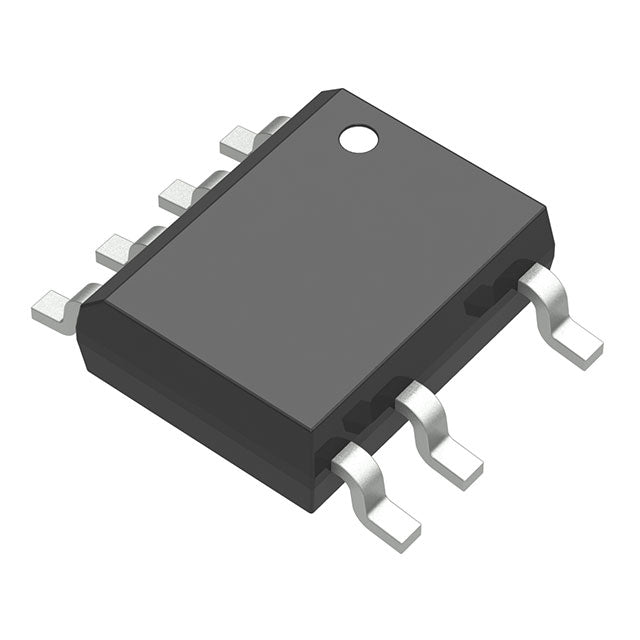

| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7A |
| ROHS |  |
The Monolithic Power Systems HF920BGSE-Z is a fixed-frequency flyback offline switcher with an integrated 900V power switch for isolated AC-DC conversion up to 9.5 W. It operates at switching frequencies up to 150kHz with an 83% maximum duty cycle, running from a 10V to 24V Vcc supply with a 4V start-up threshold. Current limiting, over load, over temperature, and short circuit protection are built in, packaged in an 8-SOIC (7 leads) rated for -40°C to 125°C junction temperature.
- 900V integrated switch provides extra voltage margin for high-voltage isolated designs.
- Fixed-frequency operation up to 150kHz supports predictable EMI behavior.
- Compact 8-SOIC package suits space-constrained auxiliary supplies.
- Built-in current limiting, over load, over temperature, and short circuit protection enhance reliability.
- -40°C to 125°C junction rating supports demanding environments.
High-Voltage Isolated Supplies
The HF920BGSE-Z integrates a 900V switch in a flyback topology, enabling isolated AC-DC conversion up to 9.5 W in high-voltage input applications where margin above standard 650V devices is valuable.
Compact Auxiliary Bias Rails
With a 10V to 24V Vcc range and 4V start-up threshold, this device supports isolated housekeeping supplies in metering, appliances, and industrial controls.
EMI-Sensitive Designs
Fixed-frequency operation up to 150kHz with frequency control supports predictable switching behavior in noise-sensitive isolated supplies.
Robust Low-Power Conversion
Current limiting, over load, over temperature, and short circuit protection, combined with -40°C to 125°C junction rating, support reliable operation in demanding environments.
- Q: What topology does the HF920BGSE-Z use?
- A: It is a fixed-frequency flyback offline switcher with galvanically isolated output and an integrated switch.
- Q: What is the breakdown voltage?
- A: 900V.
- Q: How much power can it deliver?
- A: Up to 9.5 W.
- Q: What switching frequency and duty cycle does it use?
- A: Up to 150kHz with an 83% maximum duty cycle.
- Q: What protections are included?
- A: Current limiting, over load, over temperature, and short circuit protection.
HF920BGSE-Z.pdf
- Q: What topology does the HF920BGSE-Z use?
- A: It is a fixed-frequency flyback offline switcher with galvanically isolated output and an integrated switch.
- Q: What is the breakdown voltage?
- A: 900V.
- Q: How much power can it deliver?
- A: Up to 9.5 W.
- Q: What switching frequency and duty cycle does it use?
- A: Up to 150kHz with an 83% maximum duty cycle.
- Q: What protections are included?
- A: Current limiting, over load, over temperature, and short circuit protection.
