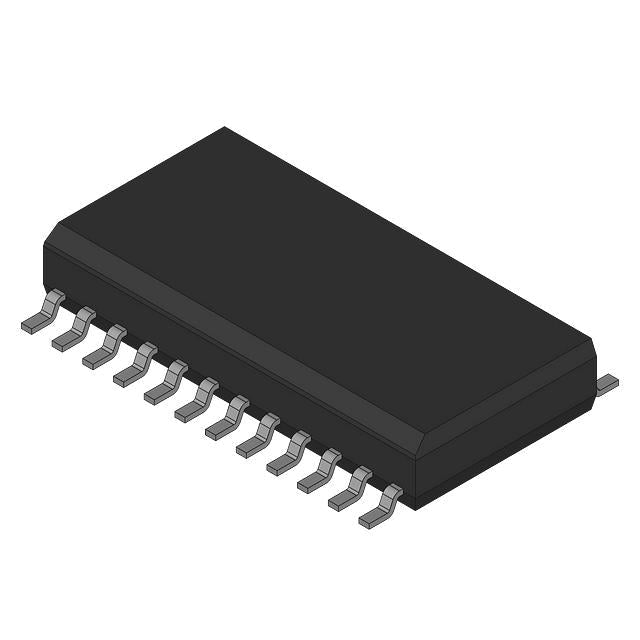

Harris Corporation HI5714/7CB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $80.28 | $80.28 |
| 15+ | $18.46 | $276.90 |
| 25+ | $18.06 | $451.50 |
| 50+ | $17.06 | $853.00 |
| 100+ | $15.05 | $1,505.00 |
| N+ | $3.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Harris Corporation |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 40M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | - |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | Folding Interpolating |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
The HI5714/7CB is an 8-bit, high-speed analog-to-digital converter from Harris Corporation, designed for applications requiring sampling rates up to 40 MSPS. With a single input channel and external reference support, it offers a straightforward interface for system integration. Housed in a 24-SOIC package, this ADC is suitable for video digitization, communications, and industrial instrumentation where speed and reliability are paramount.
- High-Speed Sampling: 40 MSPS sampling rate enables digitization of fast analog signals for real-time processing.
- Compact Package: 24-SOIC package saves board space and simplifies PCB layout.
- External Reference Flexibility: Allows designers to optimize full-scale range and accuracy for specific applications.
- Wide Temperature Range: Operates from 0°C to 70°C, suitable for commercial and industrial environments.
High-Speed Data Acquisition
The 40 MSPS sampling rate and 8-bit resolution make the HI5714/7CB suitable for high-speed data acquisition systems where fast digitization of analog signals is required, such as in transient recorders and digital oscilloscopes.
Video Signal Digitization
With its 40M sampling rate, this ADC can digitize standard-definition video signals, enabling applications in video capture cards and imaging systems that require moderate resolution and high speed.
Communications Receivers
The external reference allows for precise gain control, making the HI5714/7CB useful in IF sampling stages of communication receivers where signal integrity and dynamic range are critical.
Radar and Sonar Systems
The high-speed conversion capability supports radar and sonar signal processing, where rapid sampling of returning echoes is necessary for accurate target detection and ranging.
Industrial Instrumentation
In industrial settings, this ADC can be used in high-speed test and measurement equipment, providing reliable conversion of fast-changing sensor signals within a 0°C to 70°C operating range.
- Q: What is the resolution of the HI5714/7CB ADC?
- A: The HI5714/7CB is an 8-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 40 MSPS (40M samples per second).
- Q: How many input channels does the HI5714/7CB have?
- A: It has a single input channel (1 channel).
- Q: What type of voltage reference does it require?
- A: It requires an external voltage reference.
- Q: What is the operating temperature range?
- A: The operating temperature range is 0°C to 70°C.
- Q: What package is the HI5714/7CB available in?
- A: It is available in a 24-SOIC (0.295", 7.50mm Width) package.
