ISSI, Integrated Silicon Solution Inc IS66WVQ16M4FALL-200BLI-TR

IS66WVQ16M4FALL-200BLI-TR - High-Performance Quad SPI PSRAM

The IS66WVQ16M4FALL-200BLI-TR from ISSI (Integrated Silicon Solution Inc) is a high-performance 64Mbit Pseudo SRAM (PSRAM) designed for embedded and industrial applications requiring fast, reliable volatile memory. This Quad SPI interface memory delivers exceptional performance with a 200MHz clock frequency and 5ns access time, making it ideal for data-intensive applications in IoT devices, industrial controllers, automotive systems, and embedded computing platforms.

Engineered for demanding industrial environments, this PSRAM combines the high-speed random access capabilities of SRAM with the high density and low cost of DRAM, offering an optimal balance for memory-intensive embedded applications. The Quad SPI interface provides superior bandwidth compared to traditional SPI, enabling faster data throughput for real-time processing requirements.

Key Features & Benefits

• High-Speed Performance: 200MHz clock frequency with 5ns access time ensures rapid data processing and minimal latency for time-critical applications
• Quad SPI Interface: Enhanced throughput with Quad I/O SPI for efficient data transfer, supporting both standard and high-speed read/write operations
• Optimal Memory Configuration: 64Mbit capacity organized as 16M x 4 for flexible system integration and efficient memory utilization
• Wide Operating Voltage: 1.7V to 1.95V supply range for low-power applications, reducing overall system power consumption
• Industrial Temperature Range: Reliable operation from -40°C to 85°C (TA) for harsh environments, ensuring consistent performance across extreme conditions

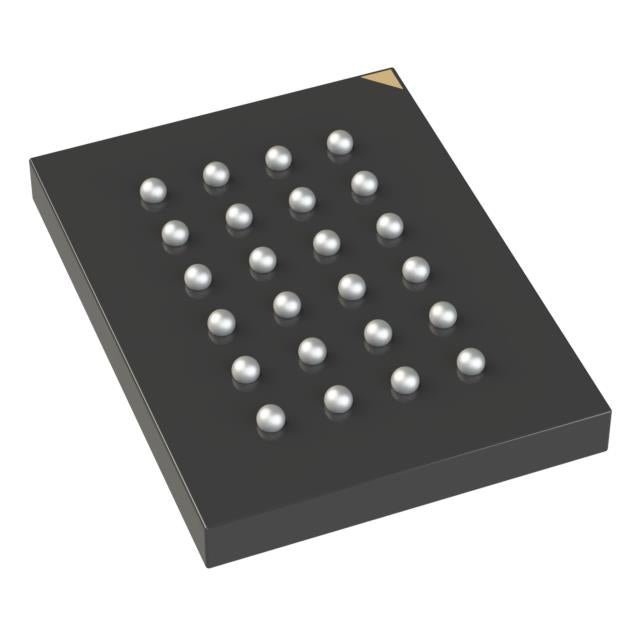

• Compact Package: Space-saving 24-TFBGA (6x8mm) surface mount package ideal for space-constrained designs
• Fast Write Cycles: 35ns write cycle time for efficient data storage and rapid buffer operations
• Low Power Consumption: Optimized power management for battery-powered and energy-efficient applications
• DRAM-Like Density: High memory density without the complexity of DRAM refresh circuitry

Performance Advantages

The IS66WVQ16M4FALL-200BLI-TR offers significant performance advantages over traditional serial memory solutions. With its Quad SPI interface, data transfer rates are up to 4x faster than standard SPI, enabling efficient handling of large data buffers, graphics rendering, and real-time data processing. The 5ns access time ensures minimal latency for critical read operations, while the 35ns write cycle supports rapid data logging and buffering applications.

Unlike traditional DRAM, this PSRAM eliminates the need for complex refresh circuitry, simplifying system design and reducing microcontroller overhead. The self-refresh capability maintains data integrity without external intervention, making it ideal for applications requiring reliable temporary data storage.

Applications

This PSRAM is perfectly suited for:

• Industrial Automation: Control systems, PLCs, and HMI interfaces requiring fast data buffering
• IoT and Edge Computing: Smart sensors, edge AI processors, and connected devices with real-time processing needs
• Automotive Electronics: Infotainment systems, ADAS, instrument clusters, and telematics units
• Embedded Processors: Microcontroller memory expansion, code execution, and data caching
• Data Acquisition: High-speed logging systems, oscilloscopes, and measurement instruments
• Communication Equipment: Routers, switches, base stations, and networking devices requiring packet buffering
• Medical Devices: Portable diagnostic equipment and patient monitoring systems
• Consumer Electronics: Wearables, smart home devices, and portable multimedia players

Design Considerations

When integrating the IS66WVQ16M4FALL-200BLI-TR into your design, consider the following:

• Power Supply Decoupling: Implement proper decoupling capacitors (0.1µF and 10µF) close to VDD pins for stable operation
• PCB Layout: Minimize trace lengths for SPI signals to maintain signal integrity at 200MHz operation
• Thermal Management: Ensure adequate airflow or heat dissipation for continuous high-speed operation
• Interface Compatibility: Verify microcontroller SPI peripheral supports Quad I/O mode for optimal performance
