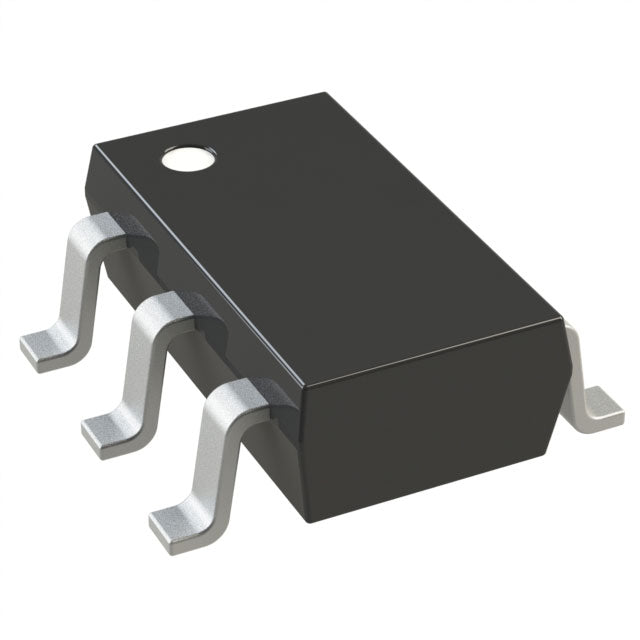

STMicroelectronics LDK220M36R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.95 | $0.95 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.61 | $15.25 |
| 50+ | $0.58 | $29.00 |
| 100+ | $0.51 | $51.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 55dB ~ 50dB (120Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The LDK220M36R from STMicroelectronics is a low dropout linear regulator delivering a fixed 3.6V output with up to 200mA of current. Its low quiescent current of 90 µA and dropout voltage of 0.35V make it an efficient choice for battery-operated and noise-sensitive applications. Housed in a compact SOT-23-5 package, it offers reliable performance with good power supply rejection.
- Extended Battery Life: Ultra-low 90 µA quiescent current minimizes standby power consumption.
- High Efficiency at Low Dropout: 0.35V dropout at 200mA allows operation from a 3.8V rail with minimal power loss.
- Clean Output: PSRR of 55dB to 50dB (120Hz-10kHz) reduces ripple and noise for sensitive loads.
- Compact Footprint: SOT-23-5 package saves board space in portable designs.
Battery-Powered Devices
The low 90 µA quiescent current and 200mA output make it ideal for extending battery life in portable electronics like wearables and IoT sensors.
Noise-Sensitive Analog Circuits
With PSRR of 55dB to 50dB from 120Hz to 10kHz, it effectively filters power supply noise for precision analog applications such as sensor interfaces and audio codecs.
Post-Regulation for Switching Converters
Its low dropout of 0.35V allows efficient post-regulation of a 3.8V rail to a clean 3.6V output, reducing ripple from DC-DC converters.
Wireless Modules
Stable 3.6V output supports RF transceivers and microcontrollers, ensuring consistent performance during transmit bursts up to 200mA.
Industrial Control Systems
The SOT-23-5 package and robust performance suit space-constrained industrial sensors and actuators requiring a regulated 3.6V supply.
- Q: What is the output voltage of the LDK220M36R?
- A: The LDK220M36R provides a fixed output voltage of 3.6V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.35V at 200mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 90 µA.
- Q: What package is available?
- A: It comes in a SOT-23-5 package.
