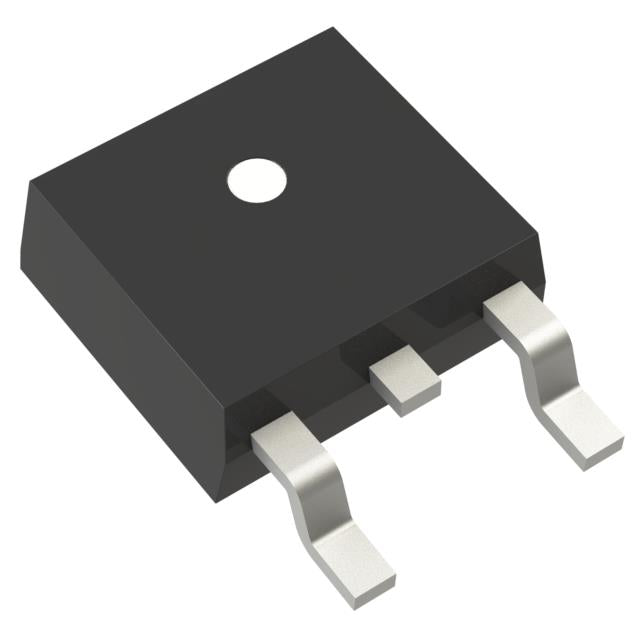

Texas Instruments LM1117DTX-3.3/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.22 | $1.22 |
| 15+ | $1.18 | $17.70 |
| 25+ | $1.15 | $28.75 |
| 50+ | $1.09 | $54.50 |
| 100+ | $0.96 | $96.00 |
| N+ | $0.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | LM1117-3.3 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| ROHS |  |
The LM1117DTX-3.3/NOPB is a fixed 3.3V linear regulator from Texas Instruments, offering up to 800mA output current. With a dropout voltage of 1.2V at full load and 75dB PSRR at 120Hz, it ensures clean, stable power for digital ICs. The TO-252-3 package allows compact PCB layouts with adequate heat dissipation. Ideal for microcontrollers, FPGAs, and wireless modules.
- Fixed 3.3V Output: No external resistors needed, simplifying design.
- High Current: 800mA supports multiple digital loads simultaneously.
- Low Dropout: 1.2V at 800mA enables operation from 5V or 4.5V rails.
- Low Quiescent Current: 5 mA reduces power consumption in battery devices.
3.3V Microcontroller Power
The LM1117DTX-3.3/NOPB provides a stable 3.3V rail for MCUs, with 800mA capacity to power peripherals and sensors.
FPGA I/O Banks
Many FPGAs require 3.3V for I/O; this regulator delivers clean power with 75dB PSRR at 120Hz, reducing logic errors.
Wireless Module Supply
For Wi-Fi and Bluetooth modules, the low dropout (1.2V) ensures stable operation even when battery voltage sags.
Sensor Arrays
Power multiple digital sensors (temperature, humidity) from a single 3.3V rail with 800mA headroom.
Industrial Control Boards
Its TO-252 package and thermal protection make it suitable for PLC I/O cards requiring 3.3V logic.
Set-Top Boxes
Provides reliable 3.3V for SoC and memory in consumer electronics, with low quiescent current for standby mode.
- Q: What is the output voltage of the LM1117DTX-3.3/NOPB?
- A: It provides a fixed 3.3V output.
- Q: What is the maximum output current?
- A: It can deliver up to 800mA.
- Q: What is the input voltage range?
- A: The input must be at least 1.2V above 3.3V (4.5V minimum), with a maximum of 15V.
- Q: What is the dropout voltage?
- A: Dropout voltage is 1.2V at 800mA load.
- Q: What is the quiescent current?
- A: Quiescent current is typically 5 mA.
- Q: What package is available?
- A: It comes in a TO-252-3 (DPAK) package.
