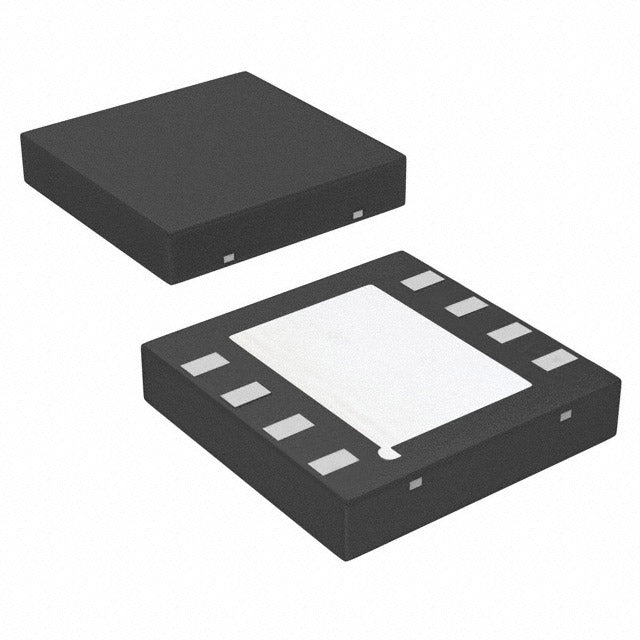

Texas Instruments LM1117ILD-ADJ/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.36 | $1.36 |
| 15+ | $1.32 | $19.80 |
| 25+ | $1.29 | $32.25 |
| 50+ | $1.22 | $61.00 |
| 100+ | $1.07 | $107.00 |
| N+ | $0.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 13.8V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
| ROHS |  |
The Texas Instruments LM1117ILD-ADJ/NOPB is a versatile adjustable linear regulator delivering up to 800mA of output current. Its output voltage can be set from 1.25V to 13.8V with just two external resistors, providing flexibility for a wide range of applications. With a low dropout voltage of 1.2V and excellent 75dB ripple rejection at 120Hz, it ensures clean, stable power for sensitive analog and digital circuits. The compact 8-WSON package is ideal for space-constrained designs.
- High Output Current: 800mA capability supports demanding loads like FPGAs and multiple sensor arrays.
- Adjustable Output: Voltage set from 1.25V to 13.8V with external resistors, offering design flexibility.
- Excellent Ripple Rejection: 75dB PSRR at 120Hz ensures clean power for audio and precision analog circuits.
- Low Dropout: 1.2V dropout at full load maximizes efficiency in battery-powered systems.
High-Current Adjustable Power Supplies
With 800mA output capability and adjustable voltage up to 13.8V, this LDO is perfect for benchtop power supplies or as a post-regulator for DC-DC converters requiring precise voltage trimming.
Battery-Powered Equipment
The 5mA quiescent current and low dropout of 1.2V make it suitable for battery-operated devices where maximizing battery life and maintaining regulation as the battery discharges is critical.
Audio and Precision Analog Circuits
The excellent 75dB PSRR at 120Hz effectively filters mains-frequency ripple, making it ideal for powering op-amps, DACs, and audio preamplifiers where clean supply rails are essential.
Industrial Sensor Interfaces
Its wide adjustable output range and robust 800mA current capability allow it to power multiple sensors and interface ICs from a single regulated rail, simplifying industrial control board design.
FPGA and DSP Core Supplies
Many FPGAs and DSPs require a low-voltage core supply with high current. The LM1117 can be configured to provide 1.8V, 2.5V, or 3.3V at up to 800mA, meeting the demands of digital processors.
Automotive Infotainment Systems
The wide input range and high current make it suitable for powering infotainment processors and displays from a regulated 5V or 12V automotive bus, ensuring stable operation despite load transients.
- Q: What is the output voltage range of the LM1117ILD-ADJ/NOPB?
- A: The adjustable output voltage can be set from 1.25V up to 13.8V using external resistors.
- Q: What is the maximum output current?
- A: This LDO can deliver up to 800mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage must be at least 1.25V and can go up to 15V for proper regulation.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 1.2V at full load (800mA).
- Q: What is the quiescent current?
- A: The quiescent current is 5mA, which is relatively low for an 800mA LDO.
- Q: What package is available?
- A: This device comes in an 8-WSON (4x4) package, ideal for compact designs.
