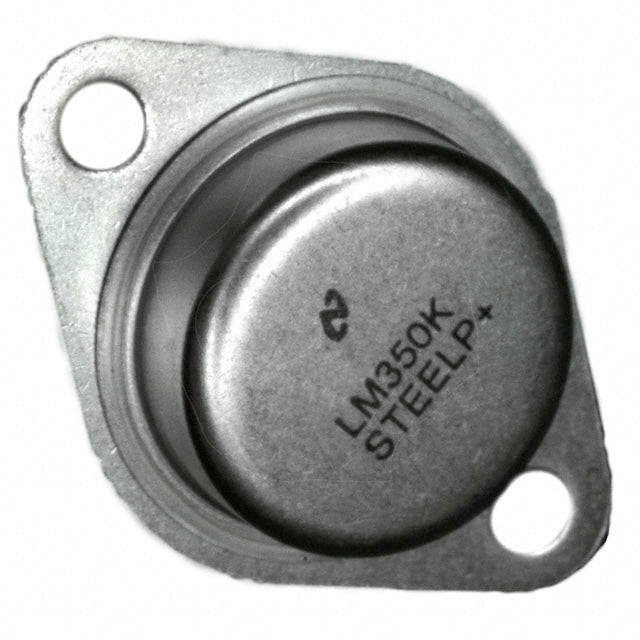

Texas Instruments LM350K STEEL/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $91.38 | $91.38 |
| 15+ | $88.49 | $1,327.35 |
| 25+ | $86.57 | $2,164.25 |
| 50+ | $81.76 | $4,088.00 |
| 100+ | $72.14 | $7,214.00 |
| N+ | $14.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 33V |
| Voltage Dropout (Max) | - |
| Current - Output | 3A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| PSRR | 86dB ~ 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-3-2 |
| ROHS |  |
The LM350K is a high-current adjustable linear regulator from Texas Instruments, capable of delivering up to 3A. With an output range from 1.25V to 33V, it offers excellent flexibility for power supply designs. The device features high PSRR (86dB at 120Hz) for clean output, making it suitable for audio and industrial applications. The TO-3-2 package provides superior thermal performance for reliable operation.
- High Current Capacity: 3A output supports power-hungry loads and multiple components.
- Wide Adjustable Range: 1.25V to 33V output covers a broad spectrum of applications.
- Superior Ripple Rejection: 86dB PSRR at 120Hz ensures clean power for sensitive circuits.
- Robust Package: TO-3-2 package offers excellent heat dissipation for reliable operation.
High-Current Adjustable Power Supply
The LM350K's 3A output makes it ideal for powering high-current loads like motors, actuators, or high-power amplifiers. Its adjustable output from 1.25V to 33V provides flexibility for various applications.
Battery Charger Circuit
Use the LM350K to build a constant-voltage/constant-current battery charger. The adjustable output allows precise voltage setting for different battery chemistries, while the 3A capability supports fast charging.
Audio Amplifier Power Stage
Power audio amplifiers with a clean, stable supply. The 86dB PSRR at 120Hz effectively filters mains hum, ensuring high-fidelity audio output.
Industrial Control Systems
Provide regulated power for PLCs and industrial controllers. The TO-3 package ensures reliable thermal performance in demanding environments.
Laboratory Power Supply
Build a versatile lab bench supply with adjustable voltage and high current. The LM350K's robust design handles varying loads without compromising stability.
LED Lighting Driver
Drive high-power LED arrays with a constant voltage. The 3A output can power multiple LEDs, and the adjustable output allows brightness control.
- Q: What is the output voltage range of the LM350K STEEL/NOPB?
- A: The output voltage is adjustable from 1.25V to 33V.
- Q: What is the maximum output current?
- A: The LM350K can deliver up to 3A of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.25V up to 33V (maximum input-output differential).
- Q: What is the dropout voltage?
- A: The dropout voltage is not specified in the provided data.
- Q: What is the quiescent current?
- A: The quiescent current is not specified in the provided data.
- Q: What package is available?
- A: This device is available in a TO-3-2 package.
