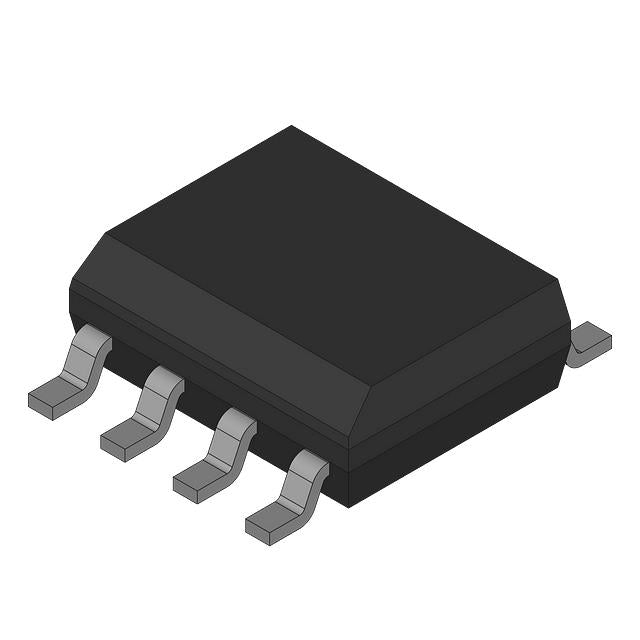

Texas Instruments LM9076BMA-5.0
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.32 | $8.32 |
| 15+ | $1.91 | $28.65 |
| 25+ | $1.87 | $46.75 |
| 50+ | $1.77 | $88.50 |
| 100+ | $1.56 | $156.00 |
| N+ | $0.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 45 µA |
| Current - Supply (Max) | 4.5 mA |
| PSRR | 60dB (120kHz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
The LM9076BMA-5.0 is a precision 5V low dropout linear regulator from Texas Instruments, delivering up to 150mA of output current. Its ultra-low 45 µA quiescent current and 0.25V dropout at full load make it an excellent choice for battery-powered and always-on applications. The 8-SOIC package offers a compact footprint for space-constrained designs.
- Extended Battery Life: Ultra-low 45 µA quiescent current minimizes standby power consumption in portable devices.
- High Noise Rejection: 60dB PSRR at 120kHz ensures clean output for noise-sensitive analog circuits.
- Low Dropout Operation: 0.25V dropout at 150mA allows efficient regulation from marginally higher input rails.
- Compact SOIC-8 Package: Industry-standard footprint simplifies PCB layout and reduces board space.
Automotive Battery-Powered ECUs
The 45 µA quiescent current and 5V fixed output make it ideal for always-on automotive electronic control units, minimizing battery drain when the vehicle is off.
Industrial Sensor Interfaces
With 60dB PSRR at 120kHz, this regulator effectively rejects high-frequency switching noise, ensuring clean power for precision industrial sensors and transducers.
Portable Medical Devices
The low dropout of 0.25V at 150mA allows operation from a 5.25V rail down to 5.0V, extending battery life in portable diagnostic equipment.
Telecom Line Cards
Stable 5V output with 150mA capability powers logic and interface ICs in telecom line cards, where consistent voltage is critical for signal integrity.
Smart Metering Systems
Ultra-low quiescent current supports continuous operation in smart meters, where long-term standby efficiency is a key requirement.
Reference Voltage for ADC/DAC
The low noise and high PSRR characteristics make it suitable as a local 5V reference for analog-to-digital converters in mixed-signal systems.
- Q: What is the output voltage of the LM9076BMA-5.0?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage is 5V (typical).
- Q: What is the dropout voltage?
- A: Dropout is 0.25V at 150mA load.
- Q: What is the quiescent current?
- A: Quiescent current is only 45 µA, ideal for battery applications.
- Q: What package is available?
- A: It comes in an 8-SOIC package.
