Texas Instruments LMX2531LQ1910E/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.00 | $11.00 |
| 15+ | $10.65 | $159.75 |
| 25+ | $10.42 | $260.50 |
| 50+ | $9.84 | $492.00 |
| 100+ | $8.69 | $869.00 |
| N+ | $1.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Frequency Synthesizer (RF) |
| PLL | Yes |
| Input | Clock |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:2 |
| Differential - Input:Output | No/No |
| Frequency - Max | 2.028GHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.8V ~ 3.2V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

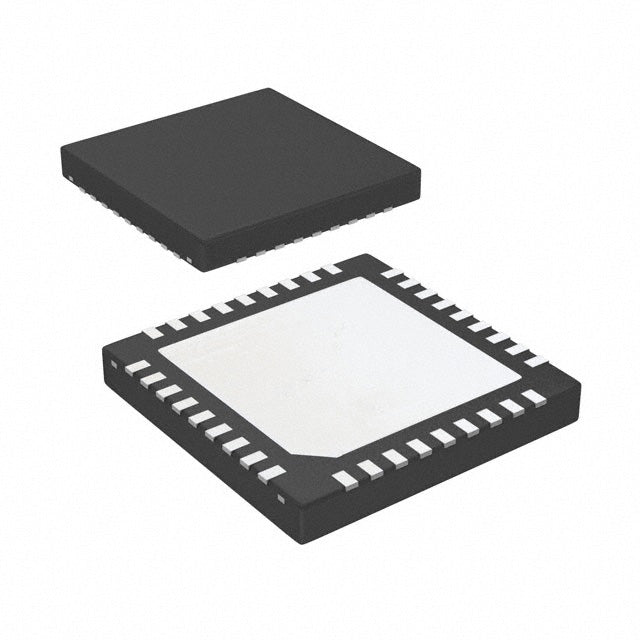

| Package / Case | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-WQFN (6x6) |
| ROHS |  |
The LMX2531LQ1910E/NOPB is a Frequency Synthesizer (RF) from Texas Instruments, designed for high-performance frequency generation. It integrates a PLL and supports frequencies up to 2.028 GHz. With 1 circuit, a clock input, and CMOS output, it offers a simple interface for various applications. The 36-WFQFN package and -40°C to 85°C temperature range make it suitable for telecom, test, and industrial environments.
- High Integration: Includes PLL and VCO in a single package, simplifying design.
- Low Phase Noise: Delivers excellent phase noise performance for critical RF applications.
- Wide Frequency Range: Supports up to 2.028 GHz, covering many wireless bands.
- Reliable Temperature Range: Operates from -40°C to 85°C, suitable for industrial use.
Wireless Infrastructure
Generate local oscillator signals for base stations and repeaters, leveraging the 2.028 GHz frequency and PLL for stable operation.
Satellite Communications
Provide precise frequency synthesis for satellite receivers and transmitters, ensuring reliable signal lock.
Test and Measurement
Use in signal generators and analyzers where accurate frequency control is required for calibration.
Broadband Access
Synthesize frequencies for cable modems and DSL equipment, supporting high-speed data transmission.
Avionics
Generate stable frequencies for communication and navigation systems, meeting stringent performance requirements.
Industrial Sensors
Provide clock signals for radar and sensing systems, benefiting from the wide temperature range.
- Q: What type of device is the LMX2531LQ1910E/NOPB?
- A: It is a Frequency Synthesizer (RF) from Texas Instruments.
- Q: Does it have a PLL?
- A: Yes, it includes a PLL for frequency synthesis.
- Q: What are the input and output types?
- A: It accepts a Clock input and provides a CMOS output.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 2.028 GHz.
- Q: What is the package and temperature range?
- A: It comes in a 36-WFQFN Exposed Pad package and operates from -40°C to 85°C.
