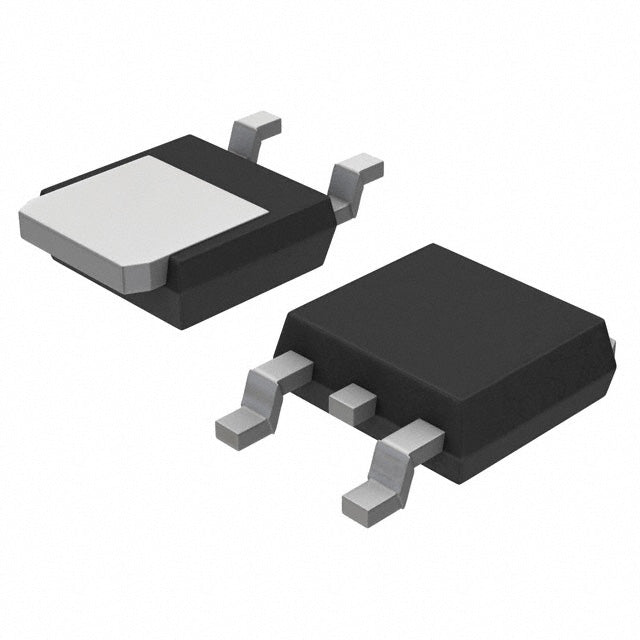

onsemi LP2950ACDT-5RKG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.30 | $1.30 |
| 15+ | $1.26 | $18.90 |
| 25+ | $1.23 | $30.75 |
| 50+ | $1.16 | $58.00 |
| 100+ | $1.03 | $103.00 |
| N+ | $0.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 12 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| ROHS |  |
The LP2950ACDT-5RKG from onsemi is a low dropout linear regulator offering a fixed 5V output at up to 100mA. It features a low quiescent current of 120µA and a dropout voltage of 0.45V at full load. The DPAK package provides good thermal performance for various applications.
- Low quiescent current (120µA) enhances battery life.
- Fixed 5V output simplifies design.
- DPAK package offers good heat dissipation.
- Low dropout voltage (0.45V) improves efficiency.
Microcontroller Power Supply
The fixed 5V output at 100mA is perfect for powering 5V microcontrollers and logic circuits in embedded systems.
Battery-Powered Devices
With 120µA quiescent current, this regulator is ideal for battery-operated devices like remote controls and portable meters.
Automotive Sensor Interfaces
The DPAK package handles moderate power dissipation, making it suitable for automotive sensor power supplies.
Industrial Logic Rails
Provides a stable 5V rail for industrial control logic, PLCs, and interface circuits.
Low-Power Analog Circuits
Low dropout and low noise characteristics support analog circuits requiring a clean 5V supply.
- Q: What is the output voltage?
- A: The LP2950ACDT-5RKG provides a fixed 5V output.
- Q: What is the maximum output current?
- A: It can supply up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage is 5V (typical).
- Q: What is the dropout voltage?
- A: Dropout is 0.45V at 100mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 120µA.
- Q: What package is available?
- A: It comes in a DPAK package.
