onsemi LP2950ACZ-3.3RAG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.54 | $1.54 |
| 15+ | $1.49 | $22.35 |
| 25+ | $1.46 | $36.50 |
| 50+ | $1.38 | $69.00 |
| 100+ | $1.22 | $122.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 12 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |

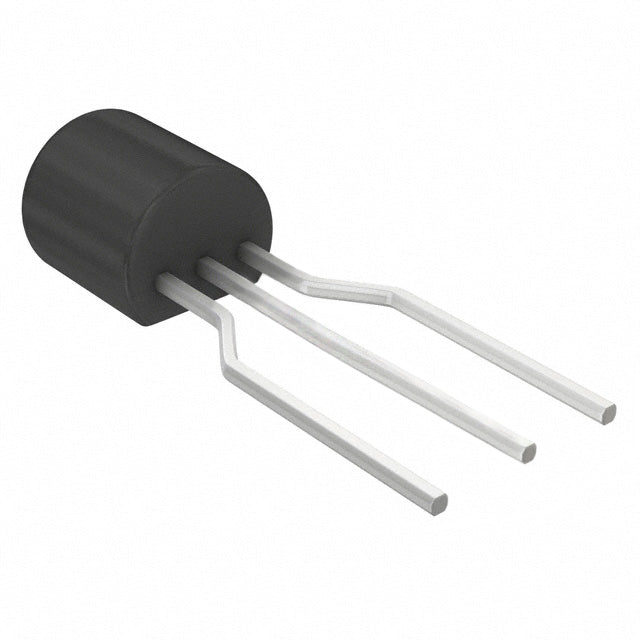

| Package / Case | TO-226-3, TO-92-3 Long Body, Formed Leads |
| Supplier Device Package | TO-92 (TO-226) |
| ROHS |  |
The LP2950ACZ-3.3RAG from onsemi is a fixed 3.3V low dropout regulator capable of delivering 100mA. It features a dropout voltage of 0.45V at full load and a quiescent current of 120 µA. The TO-92 package is ideal for through-hole applications requiring a simple, reliable power solution.
- Ultra-Low Power: 120 µA quiescent current maximizes battery life.
- Simple Through-Hole: TO-92 package is easy to integrate in prototyping.
- Low Dropout: 0.45V at 100mA maintains regulation with minimal headroom.
- Cost-Effective: Ideal for high-volume consumer and industrial applications.
Battery-Powered IoT Sensors
The 120 µA quiescent current and 3.3V output are perfect for low-power wireless nodes, extending battery life to years.
Portable Instrumentation
Provides a stable 3.3V rail for handheld multimeters and thermometers, with low dropout preserving operation as batteries discharge.
Embedded Microcontrollers
Powers 3.3V MCUs in hobbyist and industrial projects, with the TO-92 package ideal for through-hole prototyping.
Solar-Powered Chargers
Regulates solar panel output to 3.3V for charging circuits, with low quiescent current minimizing losses.
Wearable Devices
Compact TO-92 package and low power consumption suit fitness trackers and smart watches.
Reference Voltage Source
Provides a precise 3.3V reference for analog circuits, with low noise and good line regulation.
- Q: What is the output voltage?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can provide up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout is 0.45V at 100mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 120 µA.
- Q: What package is available?
- A: It comes in a TO-92 (TO-226) package.
