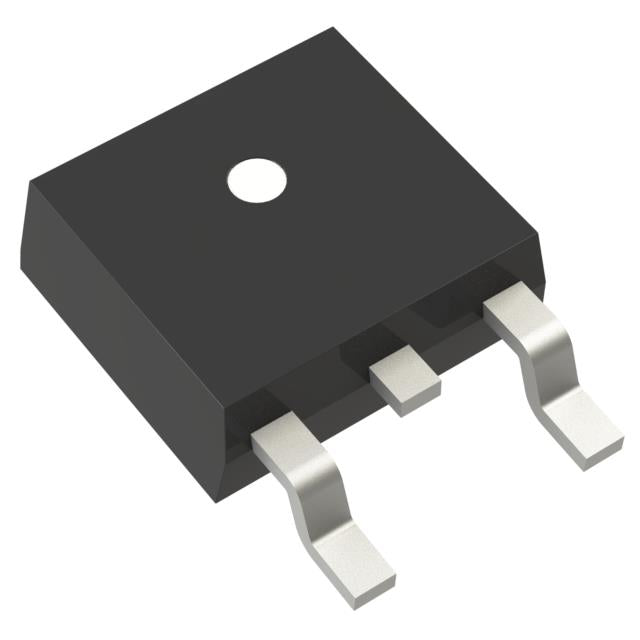

Texas Instruments LP2950CDT-5.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.72 | $2.72 |
| 15+ | $1.23 | $18.45 |
| 25+ | $1.21 | $30.25 |
| 50+ | $1.14 | $57.00 |
| 100+ | $1.01 | $101.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 14 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| ROHS |  |
The LP2950CDT-5.0/NOPB is a low-power, fixed-output linear regulator delivering 5V at up to 100mA. Its ultra-low 120 µA quiescent current makes it ideal for battery-powered applications. The 0.6V dropout voltage at full load ensures efficient operation. Housed in a TO-252-3 package, it offers a compact solution for space-constrained designs.
- Ultra-low quiescent current: 120 µA maximizes battery life in portable devices.
- Low dropout: 0.6V at 100mA maintains regulation with minimal headroom.
- Compact TO-252 package: Small footprint for space-limited PCBs.
- Fixed 5V output: Simplifies design and reduces external component count.
Battery-Powered Devices
Ultra-low 120 µA quiescent current extends battery life in portable instruments, remote sensors, and wearables.
Microcontroller Power
Provides a clean 5V supply for MCUs and digital logic in low-power embedded systems.
Reference Voltage Source
Stable 5V output with low noise makes it suitable as a reference for analog-to-digital converters.
Automotive Electronics
Powers 5V sensors and control modules in vehicles, with low dropout for cold-crank conditions.
Industrial Process Control
Regulates 5V for PLCs, transmitters, and field instruments requiring reliable, low-power operation.
Consumer Electronics
Ideal for remote controls, smart meters, and small appliances needing efficient 5V regulation.
- Q: What is the output voltage of the LP2950CDT-5.0/NOPB?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for absolute maximum ratings.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.6V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is very low at 120 µA.
- Q: What package is available?
- A: It comes in a TO-252-3 (DPAK) package.
